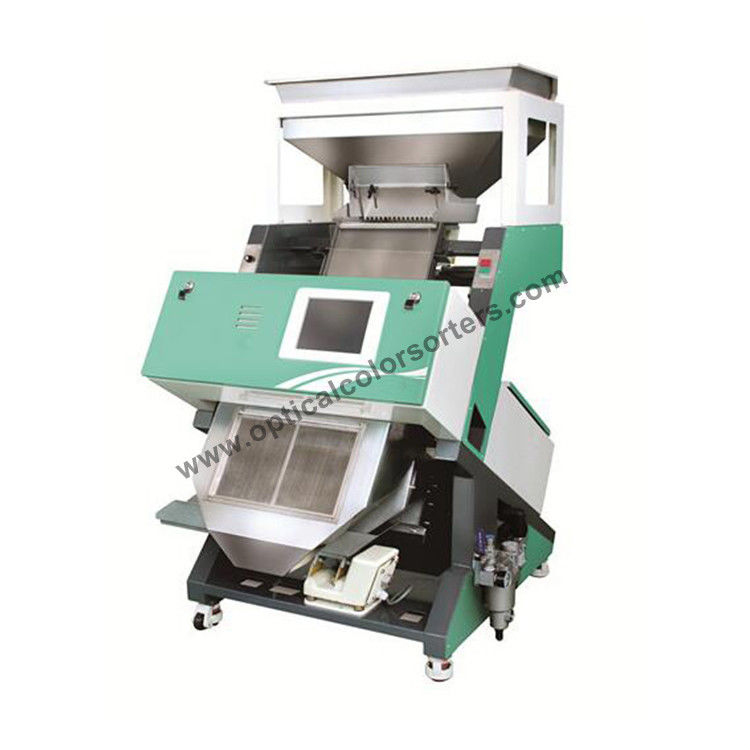

Mini Tea Color Sorter
Product Description
Tea color sorter is a machine which is used for separating the bad tea from the raw material through the color difference between the rejection and finished products.The performance of the above color to 2% of the content of Black Tea as an example, the specific indicators for the material and its impurities .
Our mini tea color sorter machine adopts domestic advanced anodizing process chute, international famous brand Pro-Face high sensitivity touch screen, Italy Matrix high frequency solenoid valve, Japan Nikon high definition aperture / focal length independent adjustable lens, automatic tracking and corrected algorithm operating system. It has the advantages consists of high color selection precision, long life, long maintenance period, stable performance and high cost performance. It is the best choice compared with similar color sorting machines.
Technical Parameters
| Model |
TCSM64A |
TCSM64B |
| Output(t/h) |
≥50 |
≥50 |
| Accuracy (%) |
≥98% |
≥99% |
| Voltage (V/Hz) |
220/50 |
220/50 |
| Power (Kw) |
0.7-2.0 |
0.8-2.0 |
| Air pressure (Mpa) |
≥0.4 |
≥0.4 |
| Consumption (L/min) |
<1000 |
<1000 |
| Weight (Kg) |
200 |
300 |
| Dimensions (mm) |
890*1110*1540 |
780*1485*1465 |
Examples of Sorting
Features
1. Compact structure, the appearance of a mini.Machinery installation, maintenance, and convenient transportation.
2. The production area covers an area of small, low environmental requirements have work, adaptability and other characteristics.
3. Intelligent man-machine interface, easy to learn, really achieve personal operating choose tea.
4. Brown accurate identification of Tie Guanyin tea with the red, yellow, blue, white stems and other undesirable products.
5. Especially for small businessmen to tea processing, tea completely change the processing mode selected.
6. The international high-end industry-specific dual view camera, recognition accuracy sorting, selected from the net rate increase.
How Does Mini Tea Color Sorter Work?
According to the different color selection of materials, detecting the colors of the granular materials that pass before them, and using mechanical or pneumatic ejection devices to divert the material whose colors do not fall within the acceptable range.
