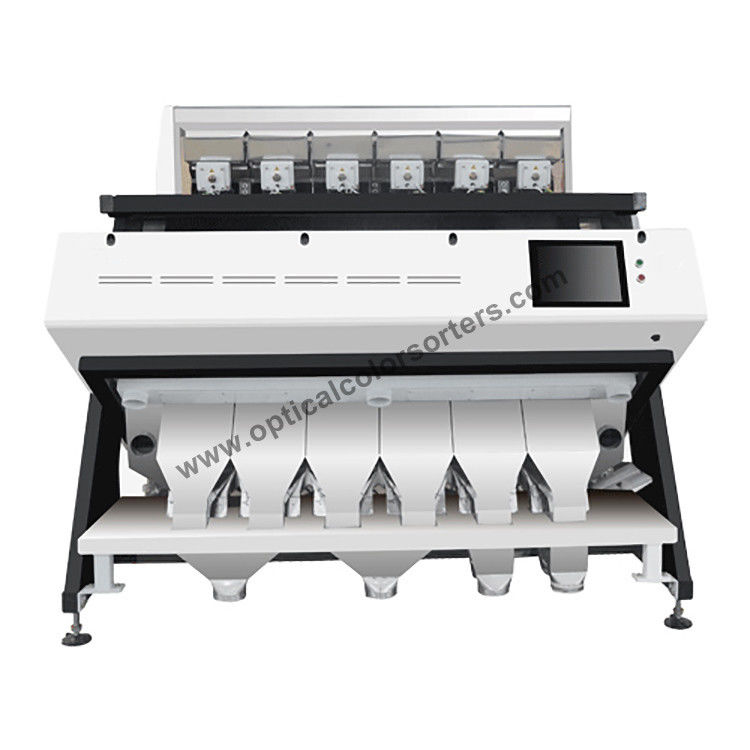

Plastic Color Sorting Machine
Product Description
CCD Optical plastic color sorting machine is suitable for all kinds of plastics, recycled plastics separation, also can be used to choose the white, yellow, black, red, green, blue and other colors of color selection. Can also apply to the PC, ABS, PA, PS, PET and PP separation of particles or material, etc.
Our color sorter machinery limited manufacture plastic color sorter machine for sorting all kinds of plastic by color.
Technical Parameters
| Name |
Channels |
Power of Main Machine(kW) |
Voltage(V) |
Air Pressure(MPa) |
Air Consumption(m3/min) |
Dimension(LxWxH)(mm) |
Net Weight (kg) |
| CG4 |
240 |
2.6 |
180~240(50Hz) |
0.6~0.8 |
≤4.0 |
1765x1570x2143 |
1050 |
| CG6 |
360 |
3.2 |
180~240(50Hz) |
0.6~0.8 |
≤5.5 |
2400x1570x2143 |
1450 |
| CG8 |
480 |
3.6 |
180~240(50Hz) |
0.6~0.8 |
≤6.5 |
2950x1570x2143 |
1800 |
| CG10 |
600 |
4.2 |
180~240(50Hz) |
0.6~0.8 |
≤8.0 |
3700x1570x2143 |
2200 |
Examples of Sorting
Product Advantages
Super Brain
According to the characteristics of the material matching, using professional self-learning and one-key automatic technology for achieving a "fool" operation.
True Color Micro Camera
Using CCD sensor technology, with HD & low distortion industrial lens which can scan material over 30,000 times in one second, micro level identification.
Point-point Clean System
Individually configurable cleaning system for each channel, with 3 times interval cleaning than other common color sorter machine.
High-Speed Ejector
Magnetically levitated high-speed ejector can completely match the whole machine, with a long using life by using Meyer unique technology.
Stepless Dimming
Complementary Stepless Dimming According to the environmental change of sorting material and automatically adjusting the brightness output with adaptive technology.
Soft Landing System
According to the design of system dynamics ensuring the soft load for material, reducing the probability of a rebound, fragmentation & loss of materials.
Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
