Mineral Color Sorter
Product Description

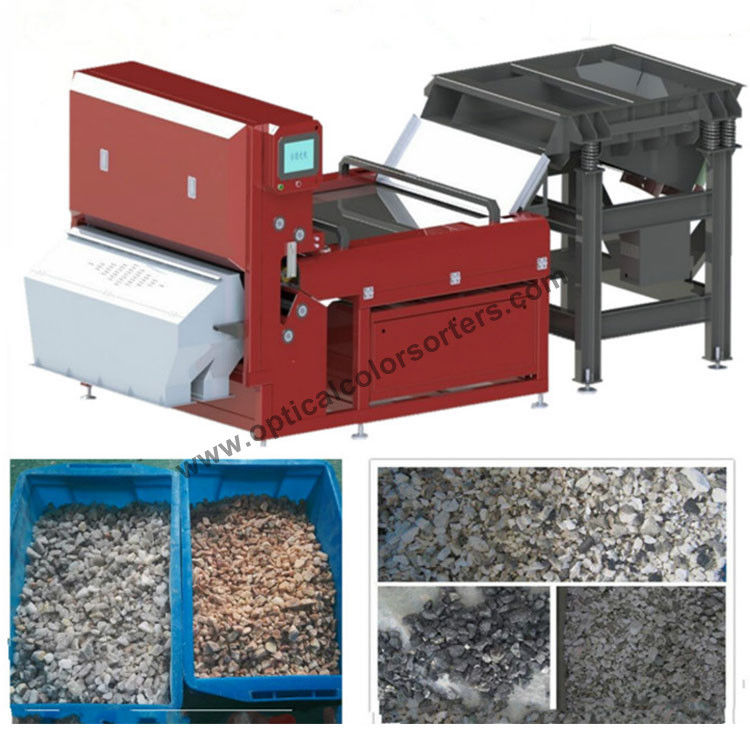

Our CCD camera mineral color sorter machine is able to work on a variety of industrial minerals. Refined red and white material can be sorted in efficient way. For instance, fused quartz, barite, industrial silica sand are good applications with our color sorters. Value of the minerals is doubled after sorting, with great pure color. Our mineral color sorters help you create unbelievable profit.
At present, it is hard to get highly pure mineral material in a traditional manner. The color sorter has a high processing capacity, which satisfies clients, and help them develop great advantages over competitors. Don’t hesitate to take actions! Customers are warmly welcome to visit us, and check the sorting effect of various mining material.
Technical Parameters
| (Model NO.) |
MS-KS-4 |
MS-KD-4 |
| (T/H)(Output) |
5-45 |
5-45 |
| (%)(Accuracy) |
≥99 |
≥99 |
| (Optimal Carryover) |
≥50:1 |
≥30:1 |
| (Voltage)(V) |
AC220V 50HZ |
AC220V 50HZ |
| (KW)(Power) |
8 |
4.5 |
| (Mpa)(Air Pressure) |
0.3-0.6 |
0.3-0.6 |
| (KG)(Weight) |
3000 |
2100 |
| (L*W*H:MM)(Dimension) |
3310*900*2345 |
3310*1580*2645 |
| (L*W*H:MM (Dimension) |
48500*26500*2750 |
4000*1647*1760 |
Function & Features
1. The linear CCD full-color sorting technology, free to adjust the spectrum area, can clearly aware the small colour difference on part of the materials.
2. Using high quality solenoid valve, high frequency, long service life, low gas consumption, high output, low to carryover ratio.
3. Belt-type flexible material conveying system, small head, low material breakage ratio, to adapt to the more color to choose material.
4. Automatic Fault-detection function, using without any worry, more at ease.
5. The leading intelligent sorting function, can be effective for color sorting target material size, shape recognition.
6. Optional infrared color sorting function, which can effectively eliminate all kinds of malignant impurities.
7. Strive to be stable and reliable on mechanical structure design, the introduction of the cooling system improves the service life of machine and stability.
Sorting Result
