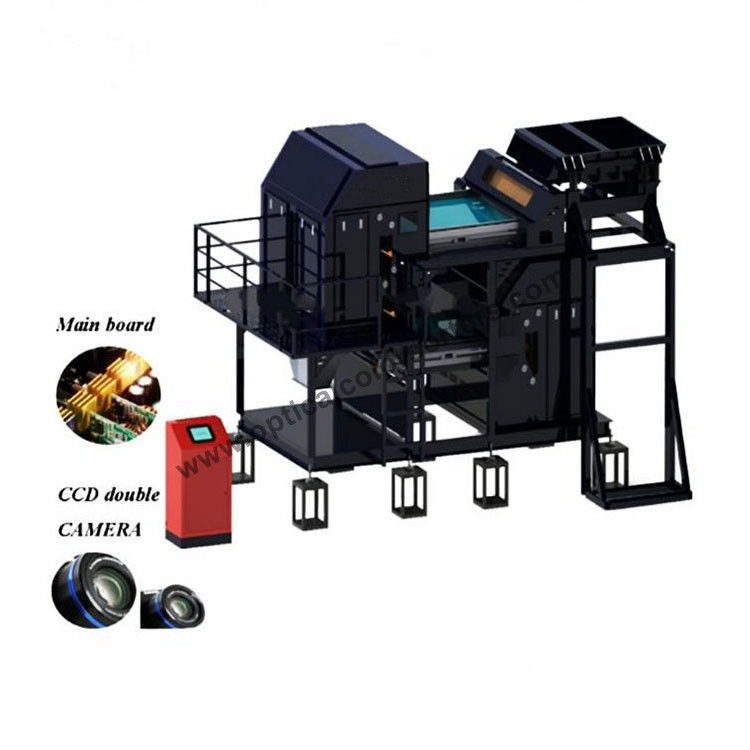

Ore Color Sorter Machine
Product Description
1. Chinese first professional CCD ore color sorter machine;
2. High capacity and high sorting accuracy;
3. Sorting big or small bulk ore at the same time;
4. Longer serving life;
5. Belt-type, flexible convey.
Technical Parameters
| Model |
MS-KS-4 |
Power (kW) |
8 |
|
Capacity(T/H)
|
45(6cM≤d≤10cM) |
Air Pressure (Mpa) |
0.6(6cM≤d≤10cM) |
| 25(3cM≤d≤6cM) |
0.5(3cM≤d≤6cM) |
| 15(1cM≤d≤3cM |
0.4(1cM≤d≤3cM) |
| 10(d≤1cM) |
0.3(d≤1cM) |
| Sorting accuracy (%) |
≥99.9 |
Consumption(L/min) |
≤5000 |
| Optimized carryover |
≥50:1 |
Weight(Kg) |
3000 |
| Power Supply |
AC220V 50HZ |
Dimension (L×W×H:mm) |
4850×2650×2750 |
Note:
1. The dimension(mm) of the sorting material.
2. The above data is worked out base on cobbles with 5% impurity, it may vary according to different materials and different impurities percentage etc.
3. Update to the machine is allowed without notification. Please refer to the actual machine for more details.
Product Function & Features
1. Industrial-grade enclosed structure design with imported main accessories has good adaptation to complicated ore sorting environment of high dust and high corrosion, thus application is wider with longer serving life.
2. Adoption of 32 bit true color image processing method and HSI color space based mathematical morphology achieves higher upgrading speed and easier operation flexibility.
3. High precision full-color plane array CCD sensor technology can detect the subtle color difference in 0.02mm2 according to the different characteristics of the ore by using the unique image processing method, thus our color sorters are capable of ensuring high sorting accuracy of varied ore materials.
4. Having wider sorting range from 40 mesh to 10 cm, our color sorters could greatly avoid waste of resources during customers break raw materials repeatedly to get available to use normal color sorters.
5. Utilization of double-layer wear& corrosion-resisting conveyor conveys bulk materials flexibly, further increasing sorting precision and reducing carryout.
6. Separation design of vibratory feeder and the main body of equipment released the main body from constant big vibration of the feeder, ensured higher stability and longer life of the equipment.
7. Unique modular design having maintenance function of automatic dust removal and automatic spray, ensuring continuous good working condition of sorters for a long time.
Application
For sorting minerals, rocks like gold, copper, limestone, barite, coal, nickel, quartz, etc with high efficiency and accuracy
Sorting Result
