CCD image acquisition system Multi Purpose Grain Color Sorter Description
Our intelligent grain color sorter has adopted color CCD image acquisition system. For special wheat and corn varieties, special light sources can be configured to optimize the lighting of materials, improve the contrast of main features, and ensure more accurate material information acquisition. The mold, coke paste, and germination particles are obtained. Wait for complete culling. Quality standards are easily met, and you can enjoy the high yields of “big production”.
CCD image acquisition system Multi Purpose Grain Color Sorter Parameters
Note:The above parameters vary with types,shapes and grain sizes of raw materials and defect rate,please choose accordingly.
The above dimensions of the machine are only for reference,which are subject to change without notice. Kind prevail.
Examples of Sorting
CCD image acquisition system Multi Purpose Grain Color Sorter Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber
through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid
valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished
goods chamber.
CCD image acquisition system Multi Purpose Grain Color Sorter Advantages
I serious multi-purpose sorter using newest structure design, it adopts both the HSV system which according to the principle of the human eyes feeling and the RGB tri-chromatic system working at the same time, it brings us more good capability of identify than human eyes, and also brings high precision sorting ability. It can fully solve the problem of different color granules of rice, grains,plastics and dried fruit-vegetables etc.New design of dust-off system brings more safe working environment for multi-purpose sorter.

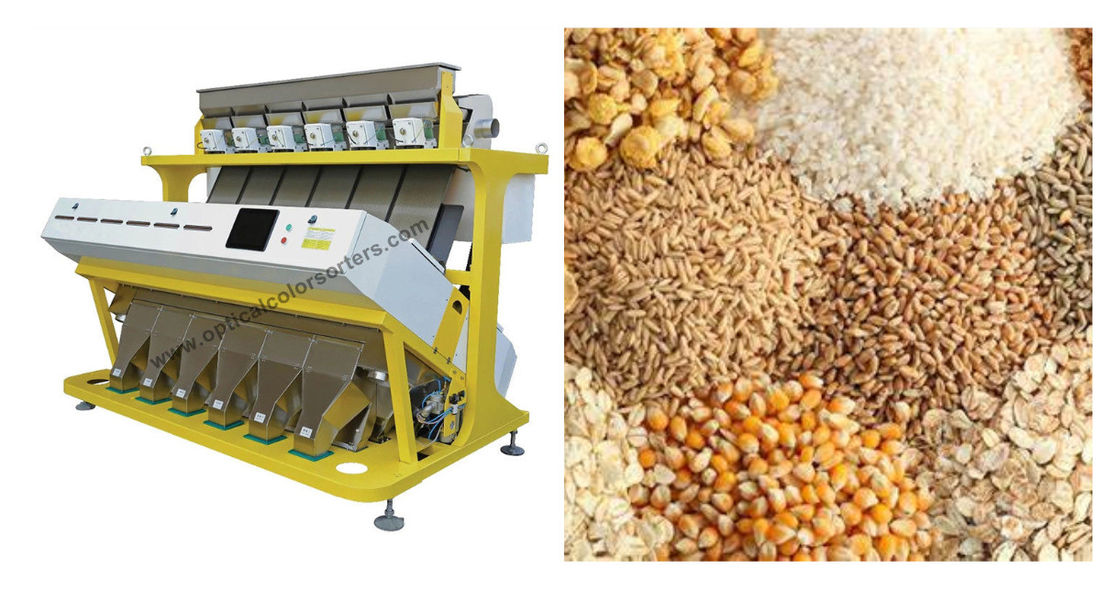

CCD image acquisition system Multi Purpose Grain Color Sorter Show
