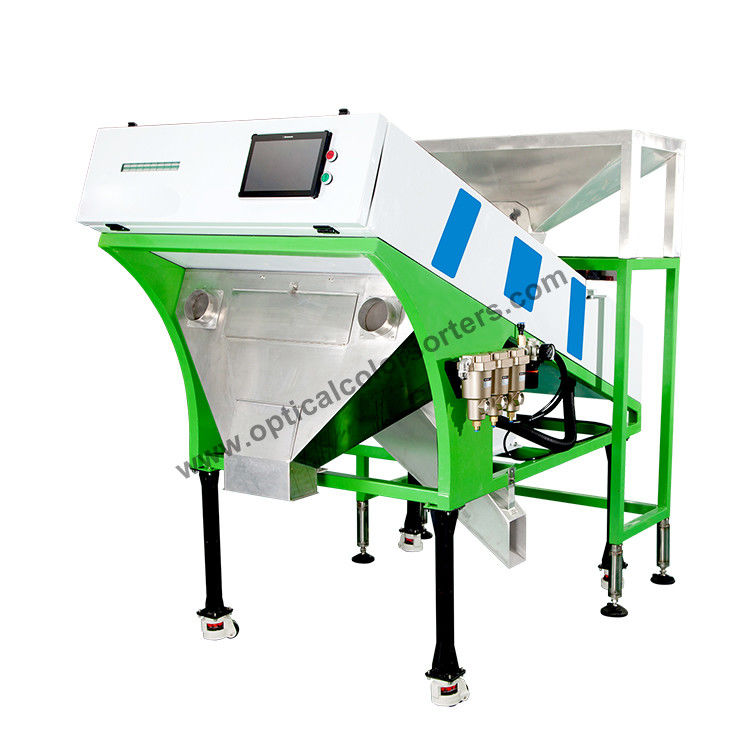

Nuts Color Sorter Machine
Product Description
We are consistently engaged in exporting and supplying the best nuts color sorter machine. We will continuously expand application area for products,and finally strive to be a world top high-tech company.
Our automatic nuts CCD color sorter machine is widely used for nuts peanuts, groundnuts, walnuts, almonds, hazelnuts, cashew ,pistachio nut, etc. Applications sorting, mainly be used to improve nuts quality after nuts cracking, sizing, shelling, etc. Previous processing automatic machines.
Technical Parameters
| Model |
6SXZ-68L |
6SXZ-68L |
6SXZ-136L |
6SXZ-272L |
| Output |
<600kg/h |
<1000kg/h |
<1200kg/h |
<2400kg/h |
| Carry over Rate(Bad:Good) |
12.5:1 |
12.5:1 |
12.5:1 |
12.5:1 |
| Sorting Accuracy |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
0.7-1.0 |
1.5-2.0 |
1.5-1.8 |
2.5-3.0 |
| Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<500 |
<600 |
<1000 |
<2000 |
| Weight |
310kg |
550kg |
490kg |
920kg |
| Dimension |
2051*1240*1762mm |
3200*2020*810mm |
2037*1540*1550mm |
1922*2430*1349mm |
Examples of Sorting
Product Advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, high speed sorting recognition is more exquisite.
2. Blend in shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satisfy to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.
Working Principle
According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material.
