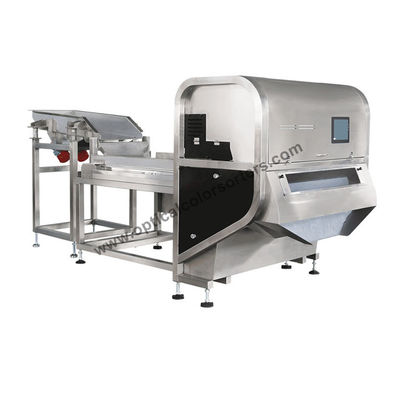

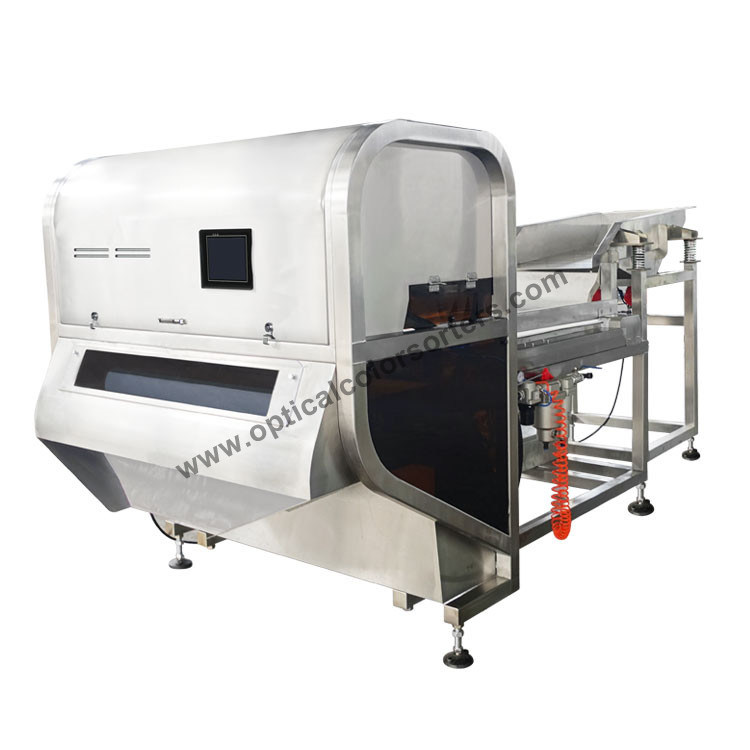

Belt Conveying Type Color Sorter Machine
Product Description
Belt conveying type color sorter machine is designed for fragile,irregularly shaped, big sized material sorting solution. Widely used for gralics, chili peppers, dehydrated vegetables, quartz sand, mineral stones,sea products etc.
Technical Parameters
| Model |
KD60 |
KD60 |
| Throughput(T/H) |
1.0-2.0 |
1.0-2.0 |
| Voltage(V) |
110-250V(50-60HZ) |
110-250V(50-60HZ) |
| Power(KW) |
2.5 |
2.5 |
| Weight/(KG) |
730 |
780 |
| Dimension(L*W*H/mm) |
3750*1540*1680 |
3750*1540*1680 |
| Sorting accuracy(%) |
≥99 |
≥99 |
| Rejection rate(%) |
≥8:1 |
≥8:1 |
| Notes |
Subject to different impurities of raw materials,parameters listed in table will change to some extent |
Sorting Results
Examples of Sorting
Function & Features
* Professional Industrial Wide View Camera Lens,Top Chromatic CCD Sensor, High Reliability And Long Life Source ,American Super Speed FPGA Processor;
* Color Sorting, Shape Sorting And Material Sorting Functions Combined;
* High Frequency And Big Capacity Ejectors Suitable For Wide Range Of Materials,Higher Efficiency;
* Intelligent System, Self-Learning Function,Easy Operation;
* Optical Sorting Machine With Using The Structure Of Track Transmissions And The Color Sorting Function Is Good. The Stable Transmission Of Materials Is Able To Effectively Increase The Take Out Ratio And The Net Sorting Accuracy Rate, And In The Meanwhile, Effectively Reduce The Percentage Of Damages Of The Materials In The Process Of Color Sorting.
* Colour Sorter Machine With Multi-Camera Identification, Higher Accuracy,New Steady Temperature Light Source
* Unique Bionic Technology Camera,Cloud Computing ,Massive Data Analysis
* Belt Conveying,Steady Falling,Perfect Output,Double-Layer Structure ,Achieving Triple Grades In One Process—High Sorting Efficiency And Accuracy.
