Beans Optical Color Sorter Soybean Color Sorter Lentil Color Sorter
Product Description
Beans Optical Color Sorter Soybean Color Sorter Lentil Color Sorter is based on the difference in the optical properties of soybeans, used optical technology to sort out different color particles automatically, so as to achieve the purpose of improved soybean quality and removed defects.
Our Intelligent CCD Soybean color sorter, new intelligent color sorting equipment with world’s leading 53.88 million high resolution pixel CCD configuration, image acquisition and comparison judgment for the selected product one by one, precise to sort out moldy, color defect, stone and other different color particles from soybean, effectively enhance the quality of soybeans.

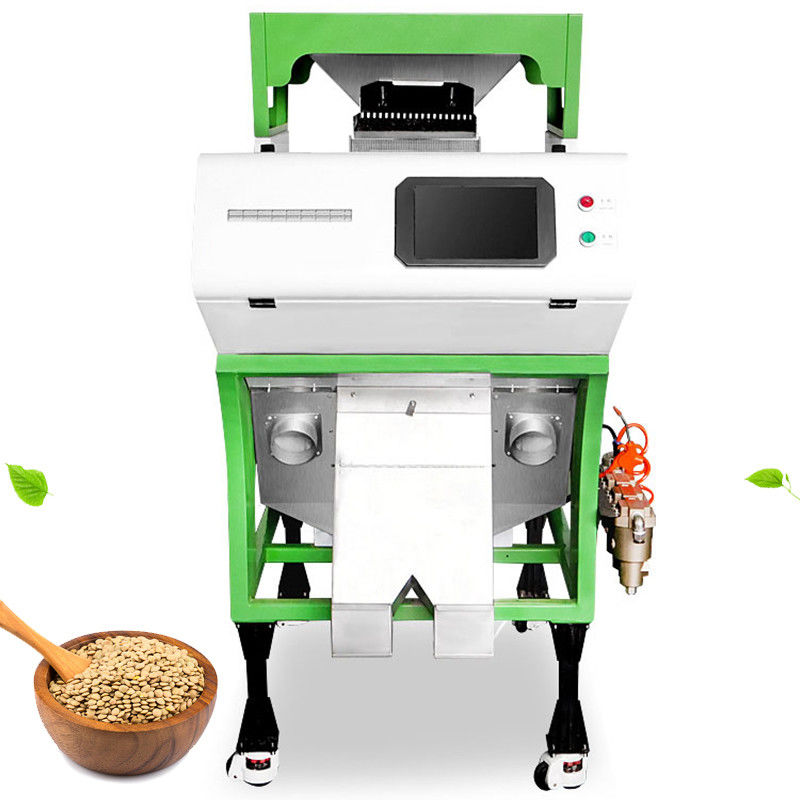

Our Soybean color sorter type classification as below, Mini intelligent CCD soybean color sorter, intelligent CCD two chutes soybean color sorter, intelligent CCD four chutes soybean color sorter and intelligent CCD six chutes soybean color sorter, suitable for different size types of processing plants and different capacity. Mini soybean color sorter have small size, large output, the output is about 500kg per hour, suitable for home and small legumes processing plant.
Intelligent Soybean color sorter is widely used, the sorting performance is excellent for soybeans, mung beans, peas, black beans, lentils, coffee bean and other beans. Compared with the artificial sorting, color sorter is more efficient, more simple and clean.
| Beans Optical Color Sorter Model |
| Model |
6SXZ-68 |
6SXZ-136 |
6SXZ-272 |
6SXZ-408 |
6SXZ-612 |
6SXZ-680 |
| Output(kg/h) |
<500 |
<1000 |
<2000 |
<3000 |
<4000 |
<5000 |
| Sorting Accuracy(%) |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
| Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9 |
4.8-5.2 |
4.8-5.2 |
8.5-10.9 |
| Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air Consumption(L/min) |
<1000 |
<1800 |
<3200 |
<4800 |
<4800 |
<6100 |
| Weight(Kg) |
260 |
440 |
820 |
1180 |
1620 |
2200 |
| Dimension(mm) |
950*1510*1428 |
1290*1510*1770 |
2010*1530*2100 |
2680*1530*2100 |
3710*1530*2100 |
4200*1530*2250
|
Beans Optical Color Sorter Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber
through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid
valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished
goods chamber.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,
it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.
