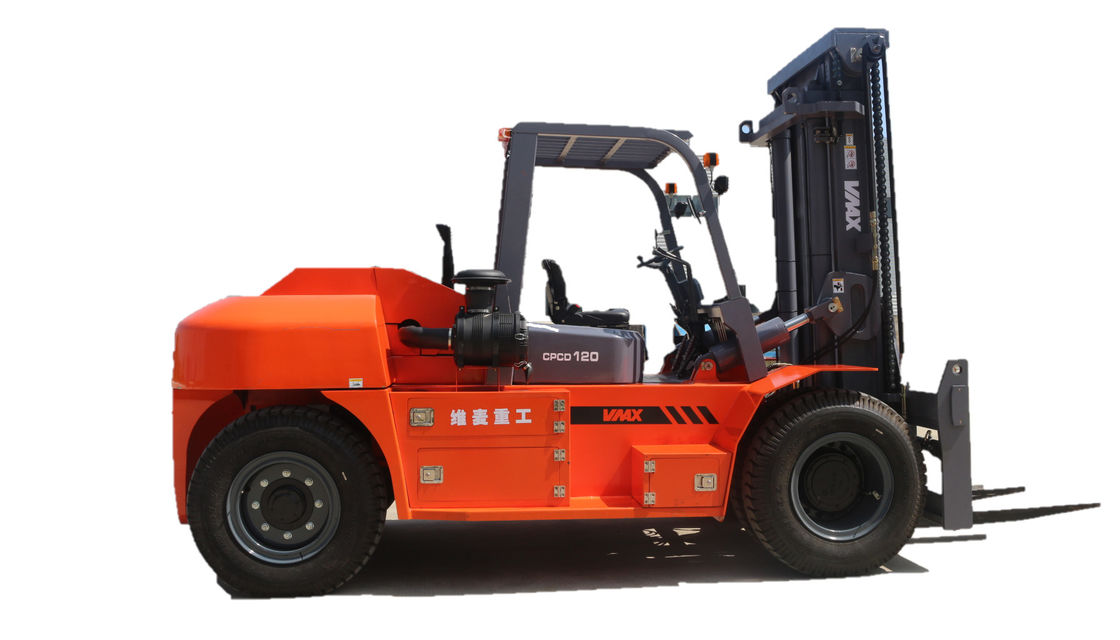

Red VMAX Most Efficient 12 Ton Forklift CPCD120 With Diesel Power Type
Product Details:
| Place of Origin: |
ANHUI,CHINA |
| Brand Name: |
VMAX |
| Certification: |
CE,SGS,BV |
| Model Number: |
CPCD120 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
Negotiable |
| Packaging Details: |
bubble wrap |
| Delivery Time: |
45 DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
3000unit / year |
Contact Now
Detailed Product Description
| High Light: |
3 wheel electric forklift, warehouse stand up forklift |
Red VMAX Most Efficient 12 Ton Forklift CPCD120 With Diesel Power Type
SPECIFICATIONS of 12 Tons Diesel Forklift  |
| |
| Main Information |
| 1 |
Manufacturer |
VMAX |
| 2 |
Model |
Unit |
CPCD120 |
| 3 |
Power type |
|
Diesel |
| 4 |
Rated capacity |
kg |
12000 |
| 5 |
Load center |
mm |
600 |
| 6 |
Operator type |
|
Drive in seat |
| Size |
| 7 |
Max. lift height of mast without Load-backrest |
mm |
4320 |
| 8 |
Max.lift height of fork(standard) |
mm |
3000 |
| 9 |
Height of mast (standard) |
mm |
2840 |
| 10 |
Free lift height(standard) |
mm |
180 |
| 11 |
Height of Load-backrest |
mm |
1015 |
| 12 |
Distance from seat to overhead guard |
|
mm |
1090 |
| 13 |
overhead guard height |
|
mm |
2430 |
| 14 |
Length without fork |
mm |
4850 |
| 15 |
Front overhang |
mm |
719 |
| 16 |
Rear overhang |
mm |
742 |
| 17 |
Wheel base |
mm |
3200 |
| 18 |
The height of traction pin |
mm |
520 |
| 19 |
Min. ground clearance |
mm |
240 |
| 20 |
Overall width |
mm |
2165 |
| 21 |
The distance between forks |
|
mm |
2460/450 |
| 22 |
Tread(front /rear) |
|
mm |
1600/1700 |
| 23 |
Min. Turning radius(outside) |
mm |
4720 |
| 24 |
Min. Turning radius(inside) |
mm |
210 |
| 25 |
Min. Intersecting aisle |
|
mm |
4080 |
| 26 |
Mast tilt angle |
deg |
6° / 12° |
| 27 |
Fork size |
mm |
1220X175X80 |
| Performance |
|
|
| 28 |
Speeds |
Max.Drive speeds(with/without load) |
km/h |
20/21 |
| 29 |
Lifting speeds (with load) |
mm/s |
340 |
| 30 |
Lowering speeds(with /without full load) |
mm/s |
600 / 300 |
| 31 |
Max. tractive force |
|
KN |
58 |
| 32 |
Max.grade ability (with/without full load) |
% |
22 |
| Weight |
| 33 |
Total weight |
kg |
14050 |
| 34 |
Weight Distribution full load (front/ rear) |
|
kg |
22960/2520 |
| 35 |
Weight Distribution zero load(front / rear) |
|
kg |
6084/7436 |
| Wheels and Tyres |
| 36 |
Quantity of wheels |
|
|
4 X / 2 |
| 37 |
Type of tyres |
|
|
Penumatic tires |
| 38 |
Tires |
Front |
|
9.00-24-14PR |
| 39 |
Rear |
|
9.00-24-14PR |
| 40 |
Driving Brake |
|
|
hydraumatic pedal |
| 41 |
Parking Brake |
|
|
Mechanical manual |
| Control device for driving and transmitting |
| 42 |
Battery |
V/AH |
24/2X80 |
| 43 |
Engine (standard) |
Model |
|
XICHAI CA6110 |
| 44 |
Rated output |
kw/rpm |
83/2000 |
| 45 |
Rated torque |
N.m/rpm |
450/1450 |
| 46 |
No.of cylinder |
|
6 |
| 47 |
Displacement |
L |
7.13 |
| 48 |
Fuel tank capacity |
L |
140
|
| 49 |
Number of speeds for transmission |
2-2 Power shift transmission |
