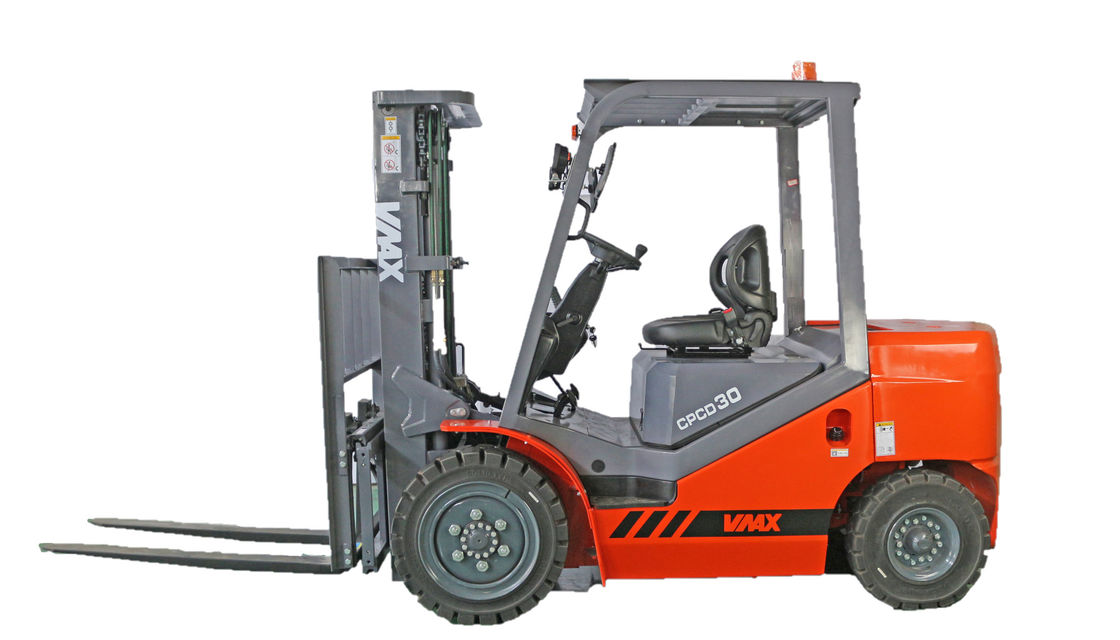

Isuzu Engine Stand Up Taylor Forklift 4 Ton Fork Width 130mm Red Yellow

Isuzu Engine Stand Up Taylor Forklift 4 Ton Fork Width 130mm Red Yellow

Isuzu Engine Stand Up Taylor Forklift 4 Ton Fork Width 130mm Red Yellow

Product Details:

Place of Origin: ANHUI,CHINA
Brand Name: VMAX
Model Number: CPCD40

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: Negotiable
Packaging Details: bubble wrap
Delivery Time: 45 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000unit / year
Contact Now
Detailed Product Description
Color: Red Engine: Isuzu
Type: Diesel Forklift Truck Rated Loading Capacity: 4 Ton
Power Souce: Diesel Engine
High Light:

warehouse stand up forklift

,

four wheel drive forklift

4.0 Ton Automatic Transmission Diesel Forklift with cabin and Japanese Isuzu engine CPCD40




Quick Details


Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPCD40

Type:Powered Pallet Truck

Power Souce:Diesel Engine

Rated Loading Capacity:4000kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070mm

Fork Width:130mm

Overall Dimensions:

2895*1410*2105

Certification:

ISO&CE certificate

After-sales Service Provided:

Engineers available to service machinery overseas

Color:Red yellow

package:

2sets/20GP

OEM:offered




Specifications

* Load capacity 4000kg with Isuzu c240 engine.3M lift height,1.07m fork,solid tyres. Automatic,12months warranty.





Model Unit CPC40/CPCD40
Power type   Diesel
Rated capacity kg 4000
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 175
Fork size(L*W*T) mm 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 485


Exterior Size		 Length without fork mm 2680
Overall width mm 1225
Mast drop mm 2065
Max.lift mm 4250
Front-wheel Overhead mm 2070
Min Turning Radius mm 2420
Min.intersecting aisle mm 2100


Speeds		 Max Driving speeds km/h 18.5/20
Lifting speeds mm/s 470/520
Lowering speeds mm/s 550/520
Max.grade ability % 20
Total weight kg 4300

Tires		 Front   28*9-15-12PR
Rear   6.5-10-10PR
Wheelbase mm 1700

Tread		 Front mm 1000
Rear mm 970
Min.ground clearance mm 110


Engine		 Model   XINCHANG490BPG
Rated output kw/rpm 37/2650
Rated torque N.m/rpm 148/1800
No.of cylinder   4
Displacement L 2.54
Fuel tank capacity L 52




Tag:

warehouse stand up forklift,

four wheel drive forklift,

industrial forklift truck
