1.5-3T Vmax Counterbalance Lift Truck The Higher The Lift Height 4x4 Forklift

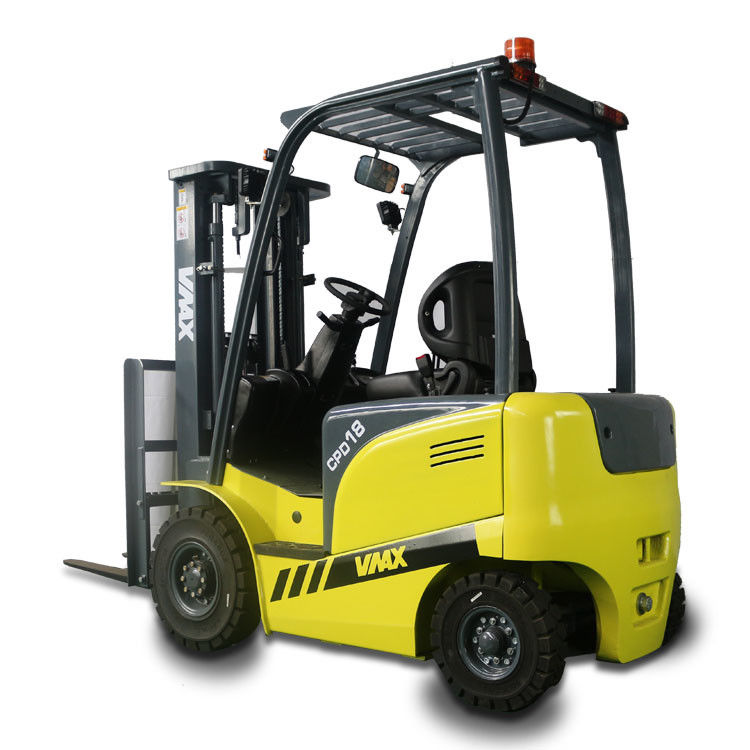

1.5-3T Vmax balance weight electric forklift truck
| Specification 1.5-3.5ton Four Wheel Electric Forklift |
| Model |
CPD15 |
CPD20 |
CPD25 |
CPD30 |
| Load capacity kg |
1500 |
2000 |
2500 |
3000 |
| Load center mm |
500 |
500 |
500 |
500 |
| Power type |
Battery Powered(DC/AC) |
| Max.lifting speeds(with load) mm/s |
285 |
250 |
230 |
290 |
| Max.Driving speeds(with without load) km/h |
12.5/14 |
12.5/14 |
12/14 |
14/16 |
| Max.Towing speeds(with load) kN |
6.5 |
10 |
10 |
13 |
| Gradeability(with load) % |
15 |
15 |
15 |
15 |
| Lifting height mm |
3000 |
3000 |
3000 |
3000 |
| Free lift mm |
60 |
60 |
60 |
80 |
| Tilting angles(forward-backward) . |
6/12 |
6/12 |
6/12 |
6/12 |
| Min. turning radius mm |
1820 |
2200 |
2250 |
2350 |
| Min. right angle aisle width mm |
1810 |
2050 |
2100 |
2280 |
| Min. under-clearance mm |
95 |
110 |
110 |
140 |
| Dimensions |
A Overall length (inincluding fork) mm |
2960 |
3350 |
3380 |
3705 |
| B Overall width mm |
1086 |
1160 |
1160 |
1225 |
| H Overall height(mast lowered) mm |
2115 |
2130 |
2130 |
2200 |
| H2 Overall height(mast extend) mm |
4015 |
4040 |
4040 |
4260 |
| H3 Overall height to overhead guard mm |
2115 |
2130 |
2130 |
2200 |
| B3 Fork width mm |
100 |
100 |
122 |
125 |
| H4 Fork thickness mm |
35 |
40 |
40 |
45 |
| A3 Fork length mm |
920(1070) |
920(1070) |
920(1070) |
1070(1220) |
| A1 Fork overhang mm |
436 |
451 |
451 |
494 |
| A2 Wheel base mm |
1250 |
1550 |
1550 |
1700 |
| Tread |
Front tread mm |
900 |
970 |
970 |
1000 |
| Rear tread mm |
920 |
950 |
950 |
980 |
| Tyre |
Front tyre |
6.50-10 |
7.00-12 |
7.00-12 |
28×9-15 |
| Rear tyre |
5.00-8 |
18×7-8 |
18×7-8 |
18×7-8 |
| Total weight kg |
3050 |
3950 |
4300 |
4900 |
| Motor |
Traction motor |
XQ-5-4A3 |
XQ-8 |
XQ-8 |
XQ-10-1C |
| Lifting motor |
XQD-7.5-3C |
XQD-10-3S |
XQD-10-3S |
XQD-13-3S |
| Battery |
Battery type |
D-440 |
D-600(700) |
D-700 |
40-DA-500 |
| Battery voltage/Capacity V/Ah |
48/440 |
48/600(700) |
48/700 |
80/500 |
Packaging & Shipping
A: Date of delivery: 15-25days after received the deposit
B: Payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
C: Guaranty period: One year or 2000hours upon receiving goods.
Our Services
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
Company Information
Anhui VMAX Machinery Manufacturing Co., Ltd. Is located in Lu'an, Anhui, China. We are one of the biggest forklift manufacturers in China, which has 67, 000 square meter area workshop and outputs 5, 000 sets forklifts annually. We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counterbalance diesel for klift, battery forklift, gas/LPG forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with top-class service. We sincerely welcome you to visit.
