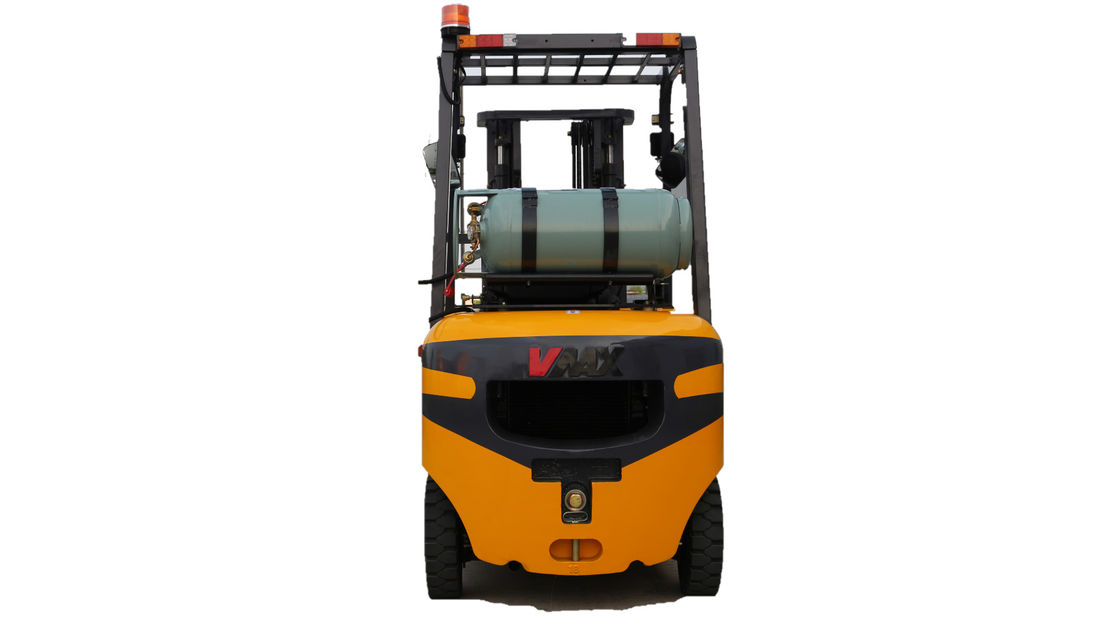

3 Ton 4.5m 3 Starge Free Full Mast Hand Operated Forklift Isuzu Engine

3 Ton 4.5m 3 Starge Free Full Mast Hand Operated Forklift Isuzu Engine

3 Ton 4.5m 3 Starge Free Full Mast Hand Operated Forklift Isuzu Engine

Product Details:

Place of Origin: ANHUI,CHINA
Brand Name: VMAX
Certification: CE,SGS,BV
Model Number: CPQYD18

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: Negotiable
Packaging Details: bubble wrap
Delivery Time: 45 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000unit / year
Contact Now
Detailed Product Description
Power: Cng Shipping: Fob
Capacity: 1.8T Type: Dual Fuel Forklift
Product Name: Gasoline Powered Forklift Color: Yellow
High Light:

gas forklift truck

,

gasoline powered forklift



3 Ton 4.5m 3 Starge Free Full Mast Hand Operated Forklift Isuzu Engine





Gasoline Powered Forklift STANDARD INSTALLMENT:
Load capacity 1800kg, automatic transmission,
3m 2 stage duplex mast,
China gasoline engine GQ-4Y, Electronic gear transmission,
1070mm fork, key switch, Pneumatic tyres, Safety seat,
Free tool box and spare parts.





Gasoline Powered Forklift Description



Model unit CPQD20/CPQY20 CPQD25/CPQY25 CPQD30/CPQY30 CPQD35/CPQY35
Rated capacity kg 2000 2500 3000 3500
Load capacity mm 500
Power type   Gasoline/LPG/CNG Forklift
Gearbox change speed type   Hydraulic/Mechanical
Grade ability % 21/20 27/20 18/20 23/20 20/20 20/20
Lifting height mm 3000
Free lift mm 140 140 145 145
Tilting angles   6/12
Min.turning radius mm 2170 2240 2460 2540
Min.under-clearance mm 110 110 135 135
Wheel base mm 1650 1650 1700 1700
Tread Front mm 970 970 1000 1000
Rear mm 970 970 970 970



Dimension

Overall length mm 2502 2576 2682 2775
Overall width mm 1170 1170 1225 1225
Overall height mm 2070 2070 2090 2090
Travel speed With load Km/h 17 17 18 18
Without load 19 19 19 19
Lifting speed With load Mm/s 470 470 430 410
Without load 600 600 500 450
Tire type   Pneumatic
Tyre Front tyre   7-12-12PR 7-12-12PR 28*9-15-12PR 28*9-15-12PR
Rear tyre   6-9-10PR 6-9-10PR 6.5-10-10PR 6.5-10-10PR
Total weight kg 3550 3880 4380 4750





Engine

Engine model   Chinese GQ-4Y
Rated power kw 34
Max. torque nm 142
No of cylinder   4
Engine fuel tank capacity L 60


Gasoline Powered Forklift Packaging & Shipping



A: Date of delivery: 15-25days after received the deposit
B: Payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
C: Guaranty period: One year or 2000hours upon receiving goods.





Our Services



As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
