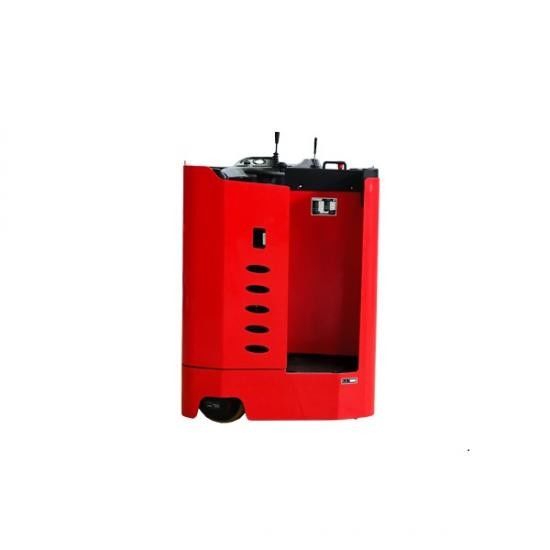

6.0-8.0 Tons ME Series Electric Pallet Truck
The MEB series forklift is a pallet truck that is mainly used for plane point-to-point handling. The battery is electrically driven and has a maximum load capacity of 6.0T.
● Horizontal handling of large tonnage goods;
● Middle and long distance handling;
● Frequent reversing occasions, such as loading and unloading on large trucks.
Main Features:
1. Maintenance-free high-power AC drive system to provide reliable driving power;
2. Standard CURTIS series controller, reliable and durable; AMP waterproof and dustproof plug-in, which provides reliable protection for the line and greatly reduces electrical faults;
3. Side-station type, electric power steering, reasonable layout of the joystick, safe, labor-saving, flexible operation;
4. The mechanical structure is solid and the key parts are made of high-strength steel plate, which is sturdy and durable.
Specification:
| Brand |
|
MiMA |
| Model |
|
ME60 |
| Power Type |
|
Battery |
| Operation Type |
|
Stand-on |
| Service weight(incl. battery) |
kg |
1650 |
| Rated Capacity |
Q(kg) |
6000 |
| Load Center |
C(mm) |
600 |
| Lifting height |
h3(mm) |
110 |
| Forks size |
l/e/s(mm) |
1200/235/86 |
| Front Overhang |
x(mm) |
980 |
| Turning radius |
Wa(mm) |
1890 |
| Max. climbing ability |
%(tanθ ) |
4/8 |
| Driving speed(load/unload) |
km/h |
5/6 |
| Lifting speed(load/unload) |
mm/s |
18/35 |
| Lowering speed(load/unload) |
mm/s |
65/10 |
