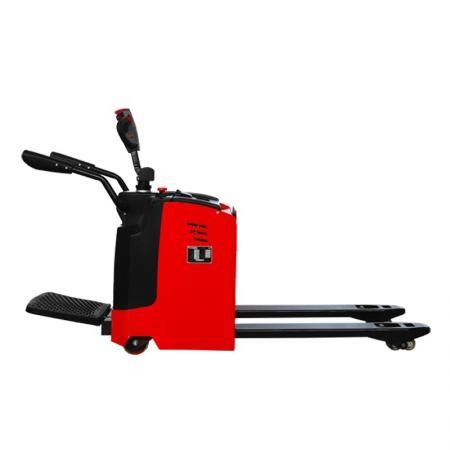

3.0-4.0T ME Series Electric Pallet Truck
Main Features:
1. Maintenance-free high-power AC drive system to provide reliable driving power;
2. Standard CURTIS series controller, reliable and durable; AMP waterproof and dust proof plug-in, which provides reliable protection for the line and greatly reduces electrical faults;
3. Station board type, pure electric steering, integrated joystick, safe, labor-saving, flexible operation;
4. The mechanical structure is solid and the key parts are made of high-strength steel plate, which is sturdy and durable.
Specification:
| Brand |
|
VMAX |
VMAX |
| Model |
|
ME30 |
ME40 |
| Power Type |
|
Battery |
Battery |
| Operation Type |
|
Stand-on |
Stand-on |
| Service weight(incl. battery) |
kg |
860 |
900 |
| Rated Capacity |
Q(kg) |
3000 |
4000 |
| Load Center |
C(mm) |
600 |
600 |
| Lifting height |
h3(mm) |
110 |
110 |
| Forks size |
l/e/s(mm) |
1150/175/75 |
1150/205/75 |
| Front Overhang |
x(mm) |
985 |
930 |
| Turning radius |
Wa(mm) |
1800 |
1750 |
| Max. climbing ability |
%(tanθ ) |
5/8 |
5/8 |
| Driving speed(load/unload) |
km/h |
5/6 |
5/6 |
| Lifting speed(load/unload) |
mm/s |
29/33 |
23/33 |
| Lowering speed(load/unload) |
mm/s |
23/18 |
25/18 |
Product Highlights:
Performance
● Station-driving standard power distribution steering makes the control lighter and more flexible;
● The latest CURTIS AC control system, precise and stable control, and higher efficiency.
Comfort
●The platform is equipped with a shock absorption design, which greatly improves the ride comfort and reduces the fatigue of long driving.
●With integrated joystick, it is simple and beautiful, and all operation functions can be easily completed with one hand;
Safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;
●The speed of the station-drive standard is automatically reduced with the increase of the steering angle.
