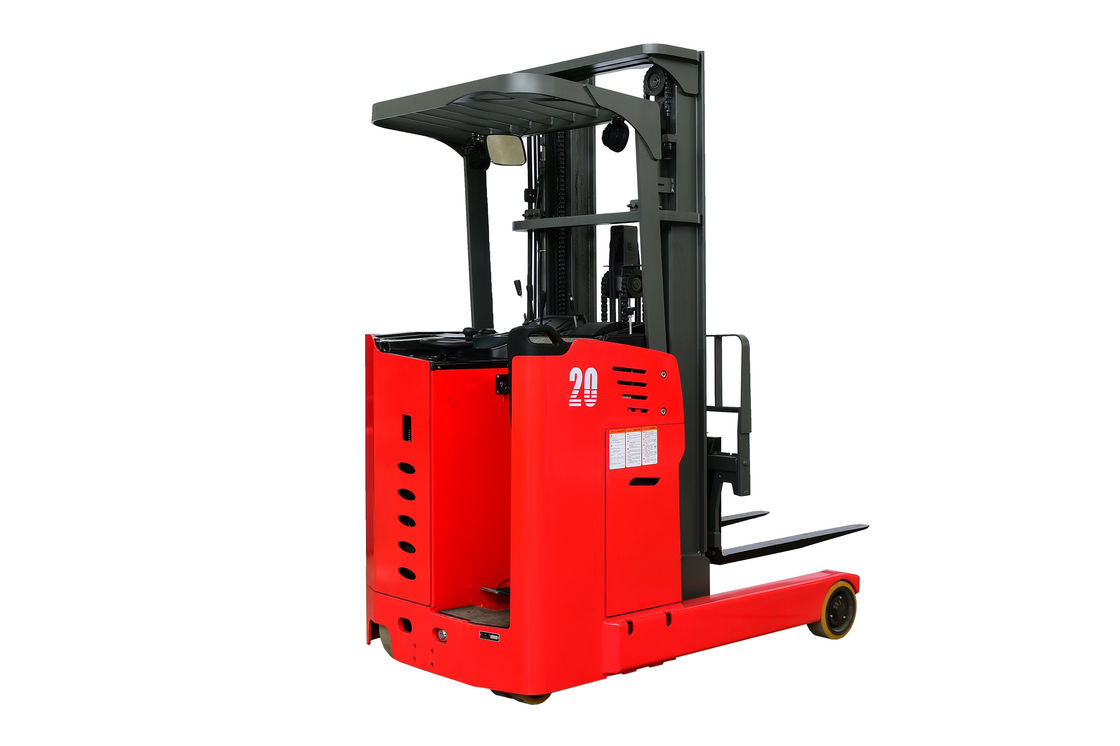

MF series stand on type reach truck 2.0T-3.0T
Features:
1. Standard AC AC drive and EPS electric power steering, better feel and lower energy consumption;
2. Smaller body size with smaller turning radius and right angle stacking channels;
3. Stand on type reach truck with the speed limit function of turning, the automatic deceleration of turning can effectively protect the safety of goods and operators;
4. Ergonomic design: easy to operate valve stem and multi-function intelligent instrument, some models with wheel display function;
5. Advanced curtis controller, more stable and safe;
Parameter:
|
Model
|
|
MF20 |
MF25 |
MF30 |
| Power type |
|
Battery |
Battery |
Battery |
| Operate type |
|
Stand on |
Stand on |
Stand on |
| Service weight(incl.battery) |
kg |
2750 |
3300 |
3400 |
| Load capacity |
Q(kg) |
2000 |
2500 |
3000 |
| Load center |
C(mm) |
500 |
500 |
500 |
| Lift height |
h3(mm) |
3000 |
3000 |
3000 |
| Fork size |
l/e/s(mm) |
1070/100/40 |
1070/100/45 |
1070/125/45 |
| Front overhang |
x(mm) |
180 |
185 |
185 |
| Turning radius |
Wa(mm) |
1784 |
1995 |
2192 |
| Max.gradeability |
|
10% |
10% |
10% |
| Traveling speed, laden/unladen |
km/h |
9/10 |
9/10 |
8/10 |
| Lifting speed,Laden/unladen |
mm/s |
220/380 |
240/320 |
220/320 |
| Lowering speed,Laden/unladen |
mm/s |
310/260 |
340/290 |
340/290 |
