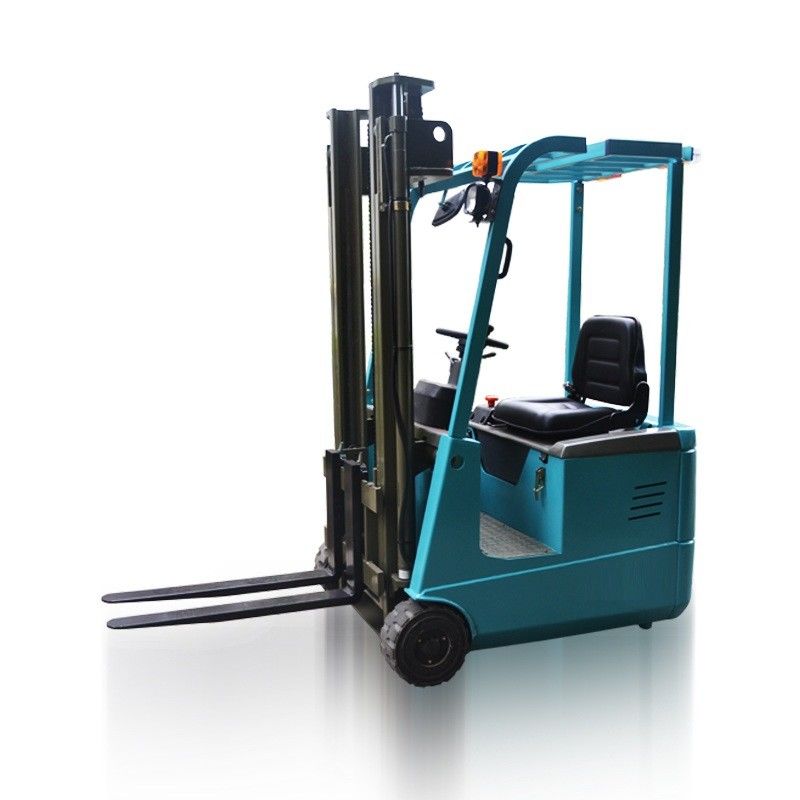

AC 1.0 -1.5 Ton Three Wheel Electric Forklift 24V Battery Powered Forklift Truck

AC 1.0 -1.5 Ton Three Wheel Electric Forklift 24V Battery Powered Forklift Truck

    • AC 1.0 -1.5 Ton Three Wheel Electric Forklift 24V Battery Powered Forklift Truck
    • AC 1.0 -1.5 Ton Three Wheel Electric Forklift 24V Battery Powered Forklift Truck
  • AC 1.0 -1.5 Ton Three Wheel Electric Forklift 24V Battery Powered Forklift Truck

    Product Details:

    Place of Origin: ANHUI,CHINA
    Brand Name: VMAX
    Certification: CE ISO
    Model Number: VKA10-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: Negotiable
    Packaging Details: bubble wrap
    Delivery Time: 45 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 3000unit / year
    Contact Now
    Detailed Product Description
    Product Name: 3 Wheel Electric Forklift Max. Lifting Height: 3000MM
    Power Souce: AC Motor Rated Loading Capacity: 1000KG
    Fork Length: 2265MM Fork Width: 915mm
    High Light:

    battery operated lift trucks

    ,

    3 wheel forklift electric

    AC 1.0 -1.5 Ton 3 Wheel Electric Forklift 24V Battery Powered Forklift Truck


    Three Wheel Electric Forklift Truck specification:



    Description Model No. VKA10-30 VKA15-30
    Rated Capacity (KG) 1000 1500
    Operator Type Seated Seated
    Max. Lifting Height (MM) 3000 3000
    Min. Turning Radius (MM) 1170 1275
    Min. Stacking Aisle---mm (1200*1200 Pallet) --AST 2870 2975
    Max Travel Speed km/h-laden/unladen 6.5/7.5 6.0/7.0
    Load center MM 500 500
    Fork Dimensions-L/W/T---mm 920*100*35 920*100*35
    Max. Gradeability ---%--Laden/unladen 42226 42226
    Lifting Speed (MM/S)-laden/unladen 125/170 125/170
    Overall Length (MM) 2265 2370
    Length-to Fork Face 1345 1450
    Overall Width (MM) 915 1055
    Height-Overhead guard--mm 1965 1965
    Height---Mast Lowered (MM) 2065 2065
    Height-Mast Extended w/ Load-Backrest -mm 3545 3545
    Height--Free Lift --mm 0 0
    Height--seat to overhead guard ---mm 1000 1000
    Tilt Angle----Forward/Backward--deg. 2/4 2/4
    Fork Spread Range (MM) 220-548 220-548
    Front Overhang ----mm 175 175
    Wheelbase ----mm 880-961 950-1031
    Tread ----mm --front/rear 747 871
    Min Ground Clearance--mm 90 90
    Front Tyre -- (MM) φ305x127 φ305x140
    Rear Tyre -- (MM) φ267x127 φ267x127
    Service Brake Hydraulic
    Parking Brake Hand
    Battery V/AH 24V /360 AH 24V/480 AH
    Battery-Weight ---kg 295 370
    Charger-Intelligent 24V /40 A 24 V/50 A
    Driving Motor (KW) 2.8 2.8
    Steering Motor (KW) 0.75 0.75
    Lifting Motor (KW) 3.5 3.5
    Service Weight ---kg --incl. Battery 1950 2170



    Packaging & Shipping



    A: Date of delivery: 15-25days after received the deposit
    B: Payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
    C: Guaranty period: One year or 2000hours upon receiving goods.





    Our Services



    As a professional manufacturer of forklift, we also can offer you customized service,
    The following items are optional:
    Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
    Side shifter, fork positioner, longer forks, fork extension
    For the details of customized configurations and options, please contact with us.
    VMAX professional service will be impressed on you.




    Company Information



    Anhui VMAX Machinery Manufacturing Co., Ltd. Is located in Lu'an, Anhui, China. We are one of the biggest forklift manufacturers in China, which has 67, 000 square meter area workshop and outputs 5, 000 sets forklifts annually. We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counterbalance diesel for klift, battery forklift, gas/LPG forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with top-class service. We sincerely welcome you to visit.
