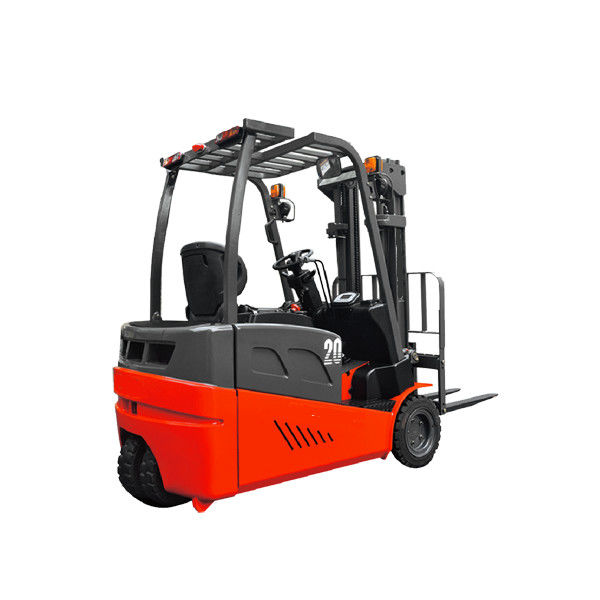

Name: Red Color Three Wheel Electric Forklift AC Motor Power Souce CE Approval For Warehouse
Brand: VMAX
SKU: VKA10-30

Home Products Heavy Duty Forklift Truck

Red Color Three Wheel Electric Forklift AC Motor Power Souce CE Approval For Warehouse

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	VMAX
Certification:	CE ISO
Model Number:	VKA10-30

Payment & Shipping Terms:

Minimum Order Quantity:	1UNIT
Price:	Negotiable
Packaging Details:	bubble wrap
Delivery Time:	45 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000unit / year

Contact Now

Detailed Product Description

Product Name:	3 Wheel Electric Truck	Max. Lifting Height:	3000MM
Power Souce:	AC Motor	Rated Loading Capacity:	1000KG
Fork Length:	2265MM	Fork Width:	915MM
High Light:	3 wheel forklift , 3 wheel forklift electric

Red Three Wheel Electric Forklift Electric Lifts For Warehouse , CE Approval

red AC motor Three Wheel Electric Forklift Truck

3 wheel electric truck Quick Details

Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:VMAX

Model Number:VKA10-30

Type:3 wheel electric truck

Power Souce:AC Motor

Rated Loading Capacity:1000KG

Max. Lifting Height:3000MM

Fork Length:2265MM

Fork Width:915MM

Overall Dimensions:920*100*35

Certification:CE

After-sales Service Provided:Engineers available to service machinery overseas

3 Wheel Electric Truck Forklift

Note: AC drive motor with strong applicability suitable for small space operation and storey operation;

3 Wheel Electric Truck specification:

Description Model No.	VKA10-30	VKA15-30
Rated Capacity (KG)	1000	1500
Operator Type	Seated	Seated
Max. Lifting Height (MM)	3000	3000
Min. Turning Radius (MM)	1170	1275
Min. Stacking Aisle---mm (1200*1200 Pallet) --AST	2870	2975
Max Travel Speed km/h-laden/unladen	6.5/7.5	6.0/7.0
Load center MM	500	500
Fork Dimensions-L/W/T---mm	92010035	92010035
Max. Gradeability ---%--Laden/unladen	42226	42226
Lifting Speed (MM/S)-laden/unladen	125/170	125/170
Overall Length (MM)	2265	2370
Length-to Fork Face	1345	1450
Overall Width (MM)	915	1055
Height-Overhead guard--mm	1965	1965
Height---Mast Lowered (MM)	2065	2065
Height-Mast Extended w/ Load-Backrest -mm	3545	3545
Height--Free Lift --mm	0	0
Height--seat to overhead guard ---mm	1000	1000
Tilt Angle----Forward/Backward--deg.	2/4	2/4
Fork Spread Range (MM)	220-548	220-548
Front Overhang ----mm	175	175
Wheelbase ----mm	880-961	950-1031
Tread ----mm --front/rear	747	871
Min Ground Clearance--mm	90	90
Front Tyre -- (MM)	φ305x127	φ305x140
Rear Tyre -- (MM)	φ267x127	φ267x127
Service Brake	Hydraulic
Parking Brake	Hand
Battery V/AH	24V /360 AH	24V/480 AH
Battery-Weight ---kg	295	370
Charger-Intelligent	24V /40 A	24 V/50 A
Driving Motor (KW)	2.8	2.8
Steering Motor (KW)	0.75	0.75
Lifting Motor (KW)	3.5	3.5
Service Weight ---kg --incl. Battery	1950	2170

Company Information

Anhui VMAX Machinery Manufacturing Co., Ltd. Is located in Lu'an, Anhui, China. We are one of the biggest forklift manufacturers in China, which has 67, 000 square meter area workshop and outputs 5, 000 sets forklifts annually. We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counterbalance diesel for klift, battery forklift, gas/LPG forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with top-class service. We sincerely welcome you to visit.
