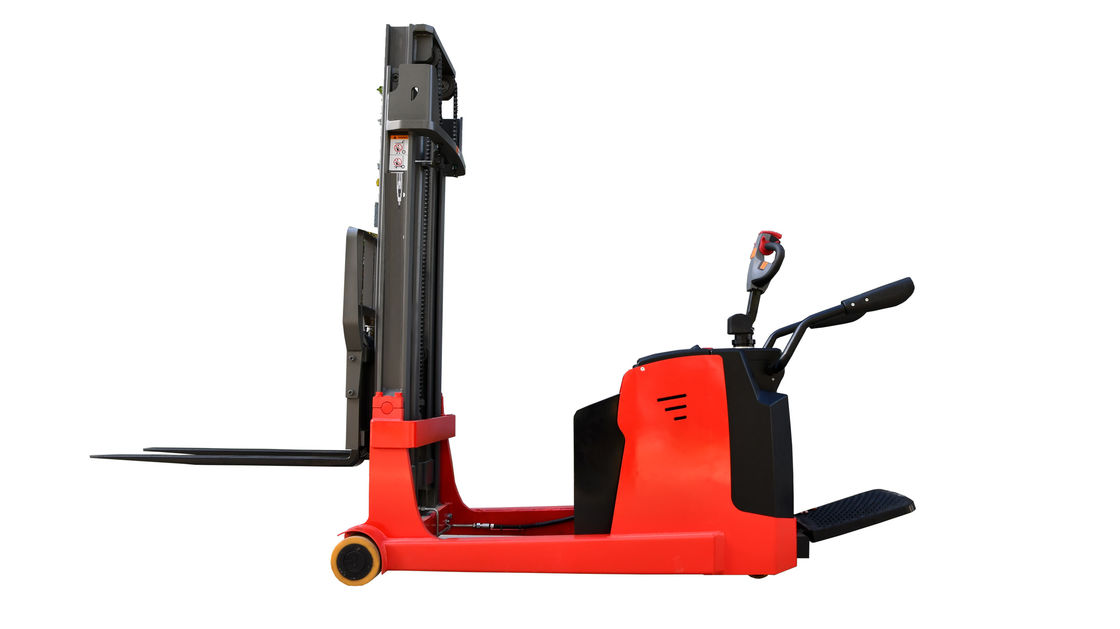

1.0-1.5T Electric/ Battery Counterbalance Stacker with Folding Fork
Main Features:
1. Electric/ Battery Counterbalance Stacker use Maintenance-free high-power AC drive system provide reliable driving power. 210AH large-capacity battery have strong endurance;
2. Standard CURTIS series controller is reliable and durable. AMP waterproof and dustproof plug which provides reliable protection for the line and greatly reduces electrical faults;
3. Station-on type, EPS and integrated Handle provide safe, labor-saving and flexible operation;
4. The newly designed floating suspension system makes the steering operation more flexible and convenient;
5. It adopts 5 points and low gravity design. The frame is made of high-strength steel plate frame structure. The forklift has large spare capacity and long service life.
Specifications:
| Model |
|
MBB10 |
MBB15 |
| Power Type |
|
Battery |
Battery |
| Operation Type |
|
Stand-on |
Stand-on |
| Service weight(incl. battery) |
kg |
1790 |
1920 |
| Rated Capacity |
Q(kg) |
1000 |
1500 |
| Load Center |
C(mm) |
500 |
500 |
| Lifting height |
h3(mm) |
3000 |
3000 |
| Forks size |
l/e/s(mm) |
1070/100/35 |
1070/100/35 |
| Front Overhang |
x(mm) |
100 |
100 |
| Turning radius |
Wa(mm) |
1415 |
1820 |
| Max. climbing ability |
%(tanθ ) |
5/8 |
5/8 |
| Driving speed(load/unload) |
km/h |
4/5.8 |
4/5.8 |
| Lifting speed(load/unload) |
mm/s |
80/110 |
80/110 |
| Lowering speed(load/unload) |
mm/s |
120/140 |
120/140 |
