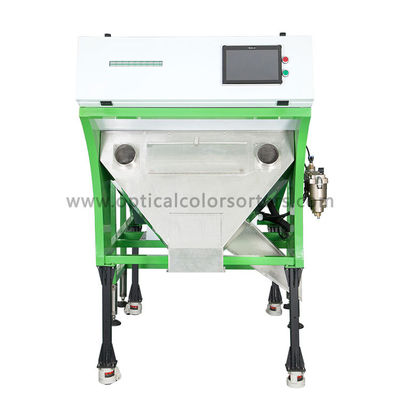

Intelligent Bean Color Sorter Machine Low Power Consumption Description
NEWBELT Coffee Sorting Machine, also called coffee bean sorting machine, is designed to quickly sort the original both green coffee beans and roasted coffee beans.
It is widely used in the processing of coffee bean and help remove the foreign impurities and improve the quality.
We are consistently engaged in exporting and supplying the best Green Coffee Bean Optical Sorting Machine. We will continuously expand application area for products,and finally strive to be a world top high-tech company.
Intelligent Bean Color Sorter Machine Low Power Consumption Technical Parameters
| Model |
6SXZ-68L |
6SXZ-68L |
6SXZ-136L |
6SXZ-272L |
| Output |
<600kg/h |
<1000kg/h |
<1200kg/h |
<2400kg/h |
| Carry over Rate(Bad:Good) |
12.5:1 |
12.5:1 |
12.5:1 |
12.5:1 |
| Sorting Accuracy |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
0.7-1.0 |
1.5-2.0 |
1.5-1.8 |
2.5-3.0 |
| Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<500 |
<600 |
<1000 |
<2000 |
| Weight |
310kg |
550kg |
490kg |
920kg |
| Dimension |
2051*1240*1762mm |
3200*2020*810mm |
2037*1540*1550mm |
1922*2430*1349mm |
Intelligent Bean Color Sorter Machine Low Power Consumption working flow
1 Input product is loaded into the in-feed hopper,

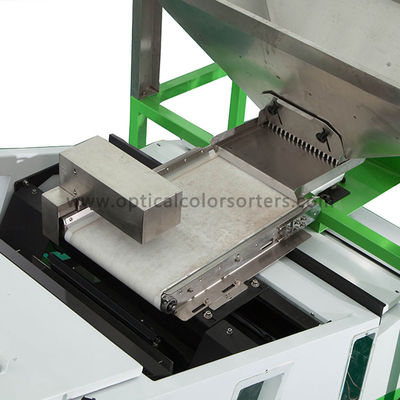

2 it moves along the vibrating plate
3 until it flws on to a sloping chute where it is individually checked and sorted by state-of-the-art cameras
4 (CCD cameras for standard version and
5 additional cameras for mono-chromatic,full color and NIR versions) situated in the front and rear of the folw.
6 Depending on the signals received by the optical device, the sorter software controls the pneumatic device,
7 which physically separates the unwanted products out of the conforming ones which naturally reach their discharging hopper.
8 The rejected products are instead deviated by a jet of compressed air produced by the relevant ejector and discharged in the front side hopper.
In automatic re-pass versions, the sorted or rejected product is automatically conveyed to another section of the machine for undergoing an identical process.

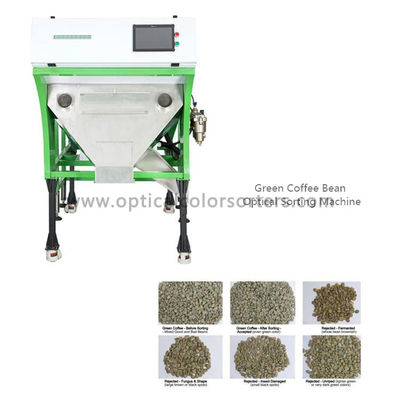

Examples of Sorting
Intelligent Bean Color Sorter Machine Low Power Consumption Advantages
1.Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2.Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3.Visible full color light spectral distribution, free to adjust the spectral region.
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5.High resolution imaging technology,take the pictures to collect the images of sorted products,it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6.Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,multi, anti-election and multi-color simultaneously.
7.High Brightness,long-life LED light can satisfy to different products and color,and needn't to change LED light.
8.Powerful software platform, easy to lear and know, simple to operate.

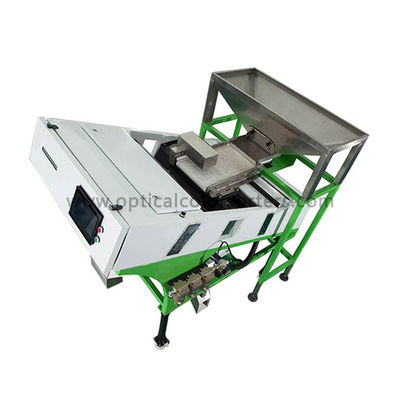

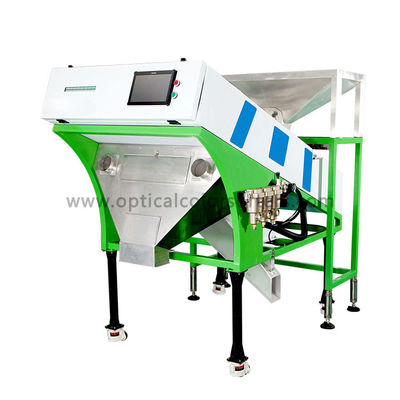

Product Process
Why Choose NEW BELT Intelligent Bean Color Sorter Machine Low Power Consumption?
1) Designed and manufactured by a major Chinese color sorter company who has been devoted in color sorter
Manufacture for over 10 years, the technology is mature and the machine is long time tested by the market
2) Famous of high accuracy and persistence

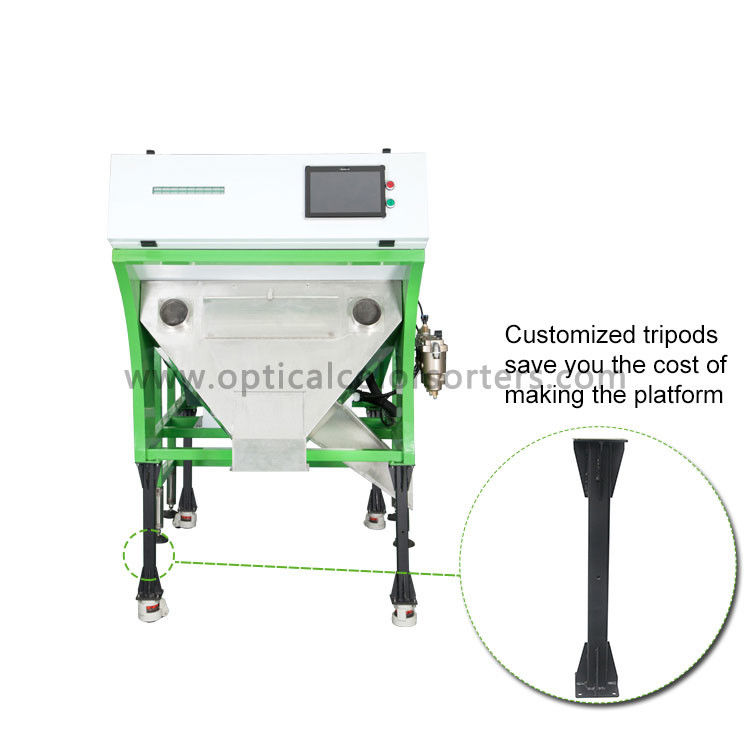

3) All our machines can be customized, including Italian matrix ejectors, Japanese SMC ejectors, Japanese Nikon cameras, etc
4) OEM is available for all of our machines
5) Engineers available to provide installation and after sale service in all countries.
