Sorting accuracy ≥99.9 Rice Color Sorter Rice Processing Machine
Rice Colour Sorter, Rice Color Sorter Machine, Rice Colour Sorter Machine manufacturer / supplier in China, offering 5 Chutes 320 Channels Grain Rice Colour Sorter Machine

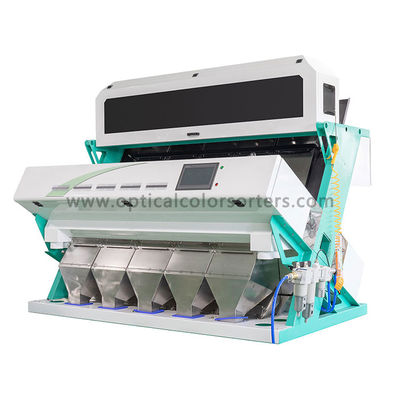

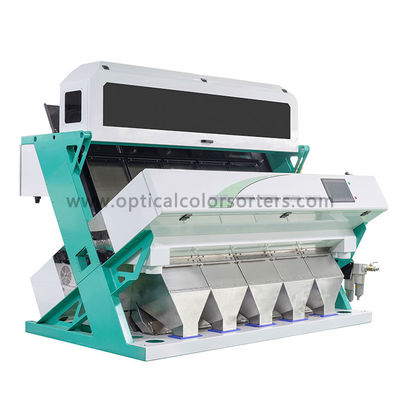

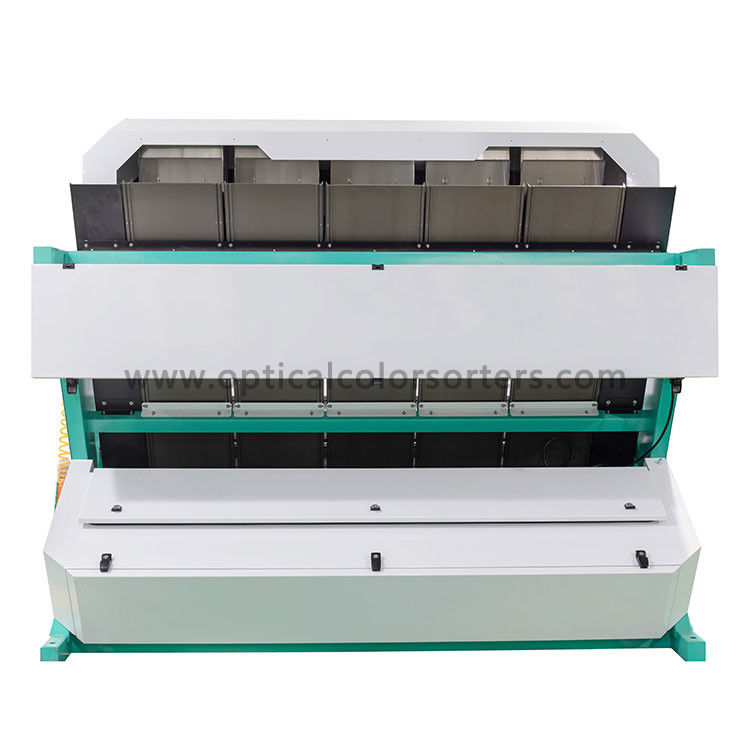

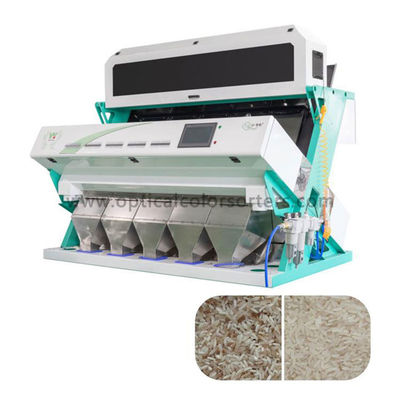

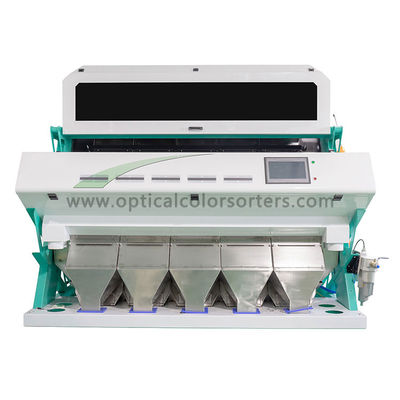

NEWBELT CCD rice sorting machine adopts the most advanced CCD sensor technology and high-speed micro spraying
value to achieve the different qualified rice grains sorting process. The whole machine is composed of a feeding system,
conveying device, sorting systemair-operated system, discharging device, and machine body. All parts could efficiently
work together without barriers. Only do you easily operate the control cabinet, and the sorted grains will be
accomplished with very high effectiveness. This machine can identify the 0.8mm scope of Heterochromatic areas for the
rice of light yellow, micro color spot, and tiny black point.
Sorting accuracy ≥99.9 Rice Color Sorter Rice Processing Machine Technical Parameters
| Model |
6SXZ-68 |
6SXZ-136 |
6SXZ-272 |
6SXZ-408 |
6SXZ-612 |
6SXZ-680 |
| Output(kg/h) |
<500 |
<1000 |
<2000 |
<3000 |
<4000 |
<5000 |
| Sorting Accuracy(%) |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
| Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9 |
4.8-5.2 |
4.8-5.2 |
8.5-10.9 |
| Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air Consumption(L/min) |
<1000 |
<1800 |
<3200 |
<4800 |
<4800 |
<6100 |
| Weight(Kg) |
260 |
440 |
820 |
1180 |
1620 |
2200 |
| Dimension(mm) |
950*1510*1428 |
1290*1510*1770 |
2010*1530*2100 |
2680*1530*2100 |
3710*1530*2100 |
4200*1530*2250 |
Sorting accuracy ≥99.9 Rice Color Sorter Rice Processing Machine Advantages
1. The system features a high quality reject system and premium LED light system. The CCD color sorter machine for rice is available in a variety of configurations ranging from a single chute to a 12 chute model to meet your rice processing demands.
2. High Resolution Colour CCD Image Acquisition System-The high resolution CCD system has the sensory ability of human eye with a maximum resolution is up to 0.15mm. Coupled with a high precision lens, the system captures clear images and identifies small defects and spots on raw materials.
3. Flexible Configuration & Variable Light Source-The LED lighting system has a long service life, low energy consumption and consistent performance. The light source can also be customized, based on the requirements of the customer and raw materials being processed.
The Principle of Sorting accuracy ≥99.9 Rice Color Sorter Rice Processing Machine
Color sorter's working principle is according to the difference of the optical properties of the material, use photoelectric detection technology automatic sorting the heterochromatic granule from raw material.
Colour sorters or color sorters (sometimes called optical sorters or digital sorters or electronic colour sorters etc.) are machines that are used on the production lines in bulk food processing and other industries.They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.
Example of sorting
Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
