Name: Multi Functional Belt Type Color Sorter With Self Learning Function
Brand: Anhui Banghao Optoelectronic Technology Co., Ltd
Availability: InStock

Home Products Belt Color Sorter

Multi Functional Belt Type Color Sorter With Self Learning Function

Product Details:

Place of Origin:	China
Brand Name:	BANGHAO
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Wooden Boxes, Vacuum Aluminum Packing
Delivery Time:	15 days after we receive your deposit
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3,000 sets per year

Contact Now

Detailed Product Description

Product Name:	Belt Color Sorter	Accuracy:	More Than 99.99%
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Free Spare Parts,Online Support,Overseas Service Center Available,Video Technical Support	Voltage:	220V 50HZ,220v/50hz,220v/110v,380V,24V
Warranty:	1 Year	Sorting Accuracy:	≥99.9
Highlight:	belt type color sorter , ccd color sorter

Multifunction Belt Type Color Sorter

Product Description

* Professional industrial wide view camera lens, top chromatic CCD sensor, high reliability and long life source, american super speed fpga processor;

* Color sorting, shape sorting and material sorting functions combined;

* High frequency and big capacity ejectors suitable for wide range of materials,higher efficiency;

* Intelligent system, self-learning function,easy operation;

* Using the structure of track transmissions and the color sorting function is good. The stable transmission of materials is able to effectively increase the take out ratio and the net sorting accuracy rate, and in the meanwhile, effectively reduce the percentage of damages of the materials in the process of color sorting;

* Multi-camera identification, higher accuracy,new steady temperature light source;

* Unique bionic technology camera,cloud computing ,massive data analysis;

* Belt conveyings, teady falling, perfect output, double-layer structure, achieving triple grades in one process-high sorting efficiency and accuracy.

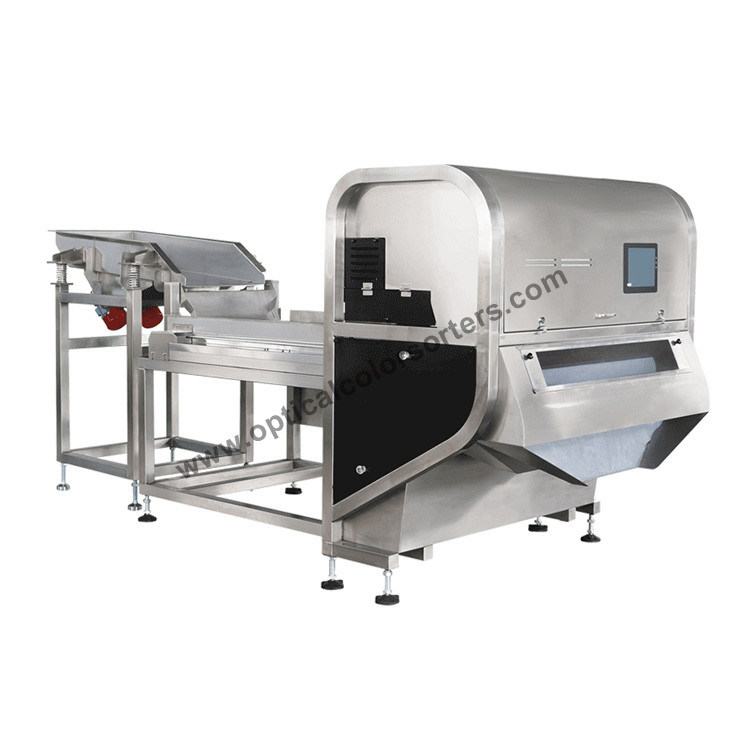

Multi Functional Belt Type Color Sorter With Self Learning Function 0

Parameter Table

Model	LDF60B	LDV60B
Throughput(T/H)	2.5-8.5	1.0-2.0
Voltage(V)	110-250V(50-60HZ)	110-250V(50-60HZ)
Power(KW)	2.5	2.5
Weight/(KG)	730	780
Dimension(LWH/mm)	375015401680	375015401680
Sorting accuracy(%)	≥99	≥99
Rejection rate(%)	≥8:1	≥8:1
Notes	Subject to different impurities of raw materials, parameters listed in table will change to some extent
