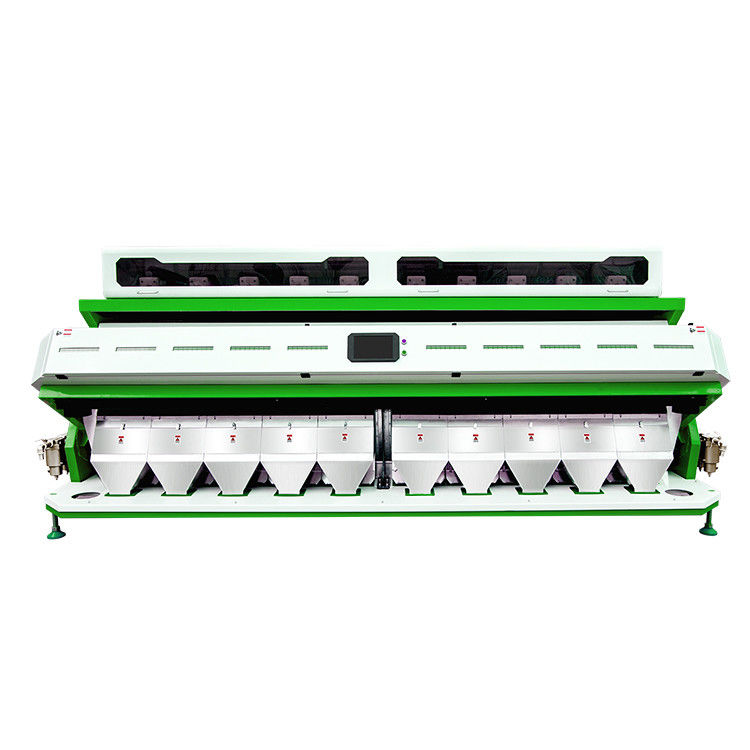

Intelligent CCD bean color sorter machine is a new multi-purpose color sorter, which offers color selection work soybeans, corn, beans, peanuts, pepper, chickpeas and so a series of agricultural products, grains and cereals.
Our intelligent CCD bean color sorting machine offer industry leading accuracy and precision to help you improve product quality and maximise product output.
Technical parameters
|
Model
|
6SXZ-68
|
6SXZ-136
|
6SXZ-272
|
6SXZ-408
|
6SXZ-612
|
6SXZ-680
|
|
Output(t/h)
|
0.6-1
|
1.2-2
|
2.4-5
|
4-7
|
6-10
|
8-16
|
|
Carryover Rate(Bad:Good)
|
>12.5:1
|
>12.5:1
|
>12.5:1
|
>12.5:1
|
>12.5:1
|
>12.5:1
|
|
Sorting Accuracy(%)
|
≥99.99
|
≥99.99
|
≥99.99
|
≥99.99
|
≥99.99
|
≥99.99
|
|
Voltage (v/Hz)
|
220V 50HZ
|
220V 50HZ
|
220V 50HZ
|
220V 50HZ
|
220V 50HZ
|
220V 50HZ
|
|
Power Supply(Kw)
|
1.0-1.3
|
1.4-1.8
|
2.5-2.9
|
4.8-5.2
|
6.6-7.2
|
8.5-10.5
|
|
Pressure(Mpa)
|
0.4-0.6
|
0.5-0.7
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Air Consumption(L/min)
|
<1000
|
<1800
|
<3200
|
<4800
|
<5600
|
<6100
|
|
Weight(Kg)
|
260
|
440
|
820
|
1180
|
1620
|
2200
|
|
Diamension(mm)
|
950*1510*1428
|
1290*1510*1770
|
2010*1530*2100
|
2680*1530*2100
|
3710*1530*2100
|
4200*1530*2250
|
Examples of Sorting
Product advantages
-
High Resolution Colour CCD Image Acquisition System – The high resolution CCD system has the sensory ability of human eye with a maximum resolution is up to 0.15mm. Coupled with a high precision lens, the system captures clear images and identifies small defects and spots on raw materials.
-
Flexible Configuration & Variable Light Source – The LED lighting system has a long service life, low energy consumption and consistent performance. The light source can also be customised, based on the requirements of the customer and raw materials being processed.
-
Dedicated Image Processing Algorithm – Raw product can be analysed based on shape and colour. For materials with complex colours, the machine sorts materials more directly and accurately by using HSV-changed colour space sorting method.
-
Unique Trough Configuration – The special anodising technology complies with international standards. The system can be equipped with cascade plate and narrow chute channel to meet the colour sorting for various materials.
-
High Quality Solenoid Valve – The high frequency ejector has a long service life and has very low air consumption, providing the highest capacity rejection output.The system is available with different sizes of solenoid valves according to the raw product being sorted.
-
Excellent Rejection Rate – The advanced image acquisition system features intelligent processing algorithms, a high quality nozzle system and excellent elimination rate.
-
Simple Easy to Use Touchscreen Interface – The graphical interface is easy to use and learn for both technicians and line operators.
Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Real Pictures Show
Why Choose Our Intelligent CCD bean color sorter machine?
1. Over 10 years experiences focus on color sorter. We are one of the biggest sorter machine factory in China. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team(5 famous doctor engineers are included ). We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, ROHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
