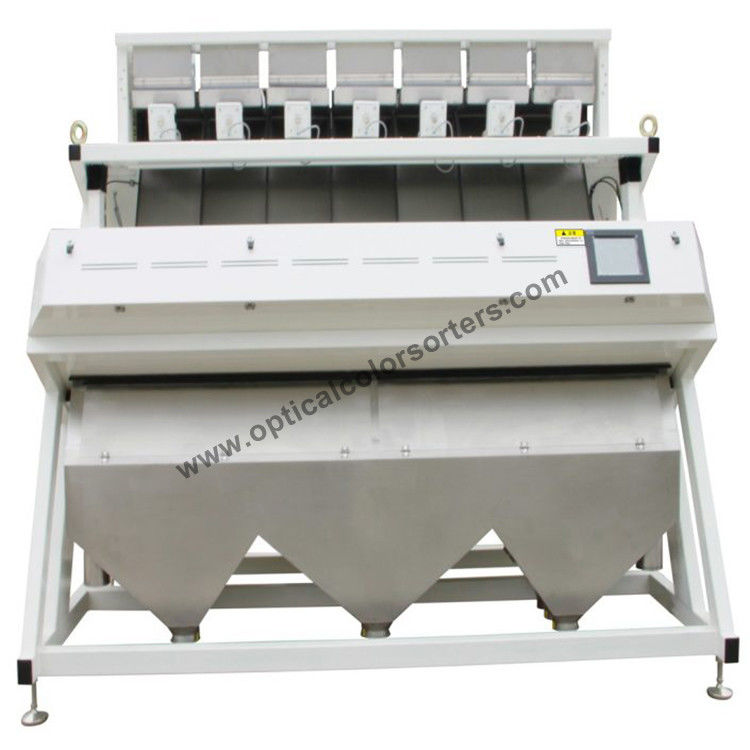

CCD Rice Optical Color Sorter
Product Description
CCD rice optical color sorter is based on differences in the optical properties of rice, the use of optoelectronic technology in the rice different color particles automatic sorting out, so as to enhance the quality of rice, the removal of impurities.
CCD rice color sorter is used for separating different grains like rice and millet on the basis of color.
Suitable Grains: All kinds raw rice material,like Thailand long rice, long-shaped rice, black rice, glutinous rice, small yellow rice, etc.
Technical parameters
| Model |
RCSB7 Series Rice Color Sorter |
| Output(t/h) |
5-15 |
| Carryover (bad: good) |
15:1 |
| Accuracy (%) |
99.99% |
| Voltage (V/Hz) |
220/50 |
| Power (Kw) |
2-4.5 |
| Air pressure (Mpa) |
0.6-0.8 |
| Consumption (L/min) |
＜4500 |
| Weight (Kg) |
1600 |
| Dimensions (mm) |
2924*1624*2175 |
Example of Sorting
How CCD Rice Optical Color Sorter Can Help you?
Improving your profitability:
* Highest quality production
* Lowest product loss
* Diverse products, any contaminant
* Minimal product damage
* Low operating costs – long term warranty
* Optimum recovery rates
Enhancing your productivity:
* Minimum operator skills
* High uptime
* Quick and easy installation
* Maintenance from remote locations
* For consistency in production
* Effective in harshest environments
Product Advantages
1. Unique-in-the-industry light different color selection mode is efficient for the high-end color selection of light beige, speckled or darkened rice. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good) Under this mode, the signal separation of belly-white and shallow yellow would be accomplished, selecting the yellow without any white, as is a pioneering technology in the industry.
2. Under the different-color mode, color-selection requirements of all kinds of grain can be achieved. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good)
3. Under the belly-white mode, color selection will be further optimized. For the belly-white, the first-time output compounding rate is above 1:1; and the second-time over 25:1. For full-white or full-yellow, the first-time output compounding rate is also above 1:1; and the second-time more than 30:1. With easy mode-shift function, unique 3-color convertible background board, all modes are free to shift in betweens by changing the automatic light sources, except for the reversed-selection mode which requires special light source.
4. Newly-optimized operating interface is quite user-friendly. The “one-button auto” and “project back-up” functions help to reset the original parameters when misconduct happens.
5. Newly-designed mechanical structure provides favorable stability and applicability. There are two output mode, the large-chute mode and separated small-chute mode. Each mode is equipped with reinforced chutes that greatly reduce the output compounding rate. Large chute is convenient for installation, while small chute allows the user to change into “3-time color selection” model according to customer requirements.
6. Innovative smart LED shadowless cold light system design can efficiently find out small spots, light yellow,belly-white,core-white,black pin-points, which makes identification and judgment much easier, sorting more accurate. The light source has long service life, high luminous efficiency and strong anti-interference stability, and no warm-up is needed.
7. Unique direct-spray nozzle has greatly eliminated the huffing resistance, reduced the air consumption, accelerated the response speed and made the operation more accurate and effective whist diminishing the output compounding rate.
8. International cutting-edge industry special 5088 full-color high-speed line scan imaging sensor CCD, and special color sorting cameras tailored by top International suppliers,can precisely identity subtle spots of 0.04 mm², and meet high-end color sorting requirements of synchronous sorting and independent sorting for belly-white and core-white.
9. The rice small lesion, shallow yellow, white belly, white core, needle point such as black Leis, grain,aiming at provide more flexible separation combination scheme in the multiple modes of complex intelligent algorithm, color sorting accuracy higher, ratio of lower.
Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Delivery Time: 15-20 Days after order confirmed.
Payment Terms: TT, Letter of Credit.
