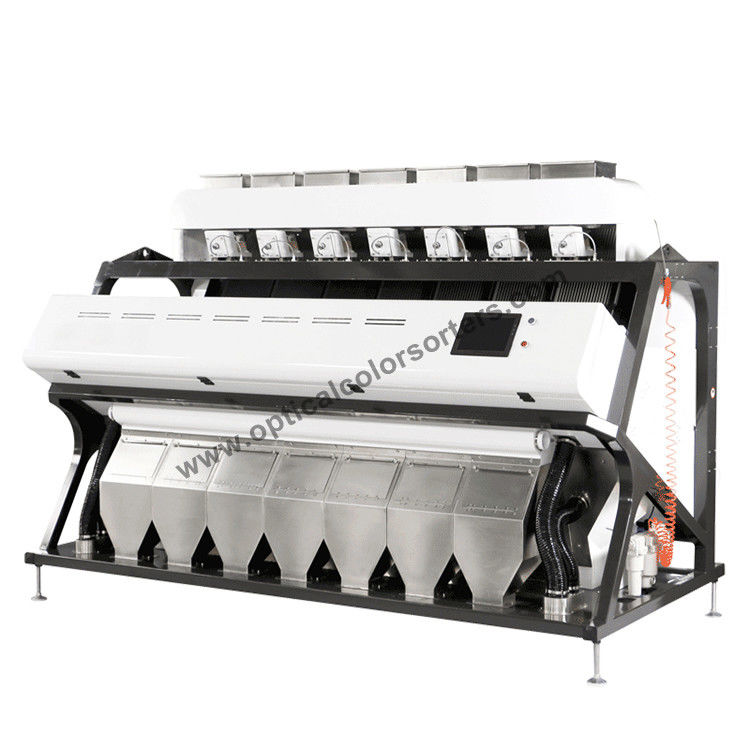

Intelligent Rice Color Sorter
Color sorters are mostly used in sorting grain (agricultural products). The rice sorting industry is the first big market, the rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher.
Our company offers the widest range of color sorter machine,high efficiency intelligent rice color sorter available in the food industry today. We offer solutions for a multitude of food applications. Join in us now!
Parameter Table
| Model |
MS300 |
MS500 |
MS700 |
| Throughput(T/H) |
1.0-3.0 |
2.5-7.0 |
4.5-10.0 |
| Voltage(V) |
110-250V(50-60HZ) |
| Power(KW) |
1.8 |
2.6 |
3.5 |
| Weight/(KG) |
885 |
1275 |
1665 |
| Dimension(L*W*H/mm) |
1174*1658*2038 |
2402*1658*2038 |
3030*1658*2038 |
| Sorting accuracy(%) |
≥99 |
| Rejection rate(%) |
≥10:1 |
| Air consumption(L/min) |
800-1600 |
1300-2200 |
1800-3600 |
| Notes |
Subject to different impurities of raw materials,parameters listed in table will change to some extent. |
Sorting Results
Sorting Examples
Products Features
* Optical sorting With High Resolution 5400Pixel CCD Camera,High Reliability And Long Life LED Light Source;
* Efficient And Stable Software System,Intelligent Algorism,User Friendly Interface；
* Better Sorting Accuracy ,Lower Carryover, And Bigger Production Capacity；
* SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
* Rice Colour Sorter,Sorting Technology With Expert Sorting Solution Realizes One Key Debugging
* Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
Cases
