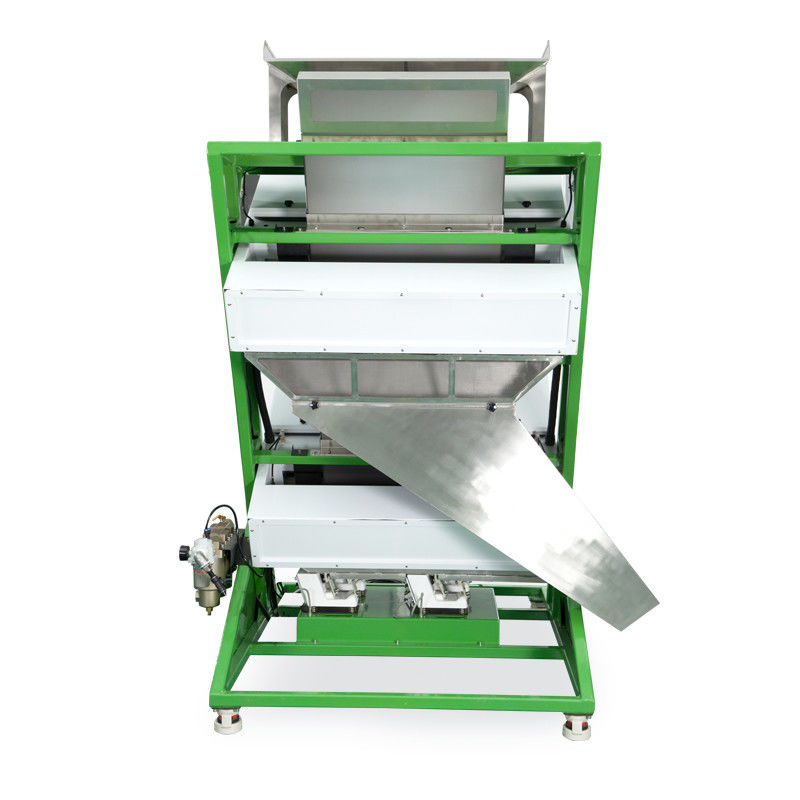

Intelligent double-layer single-channel color tea color sorter specializes in precise screening of bad tea impurities
Product Description
The tea color sorting machine refers to the high-tech opto-mechanical equipment that uses the high-definition CCD optical sensor to select the tea using the color difference between the tea stem, the yellow piece and the genuine one in the tea. In the industry, more than 80% of the tea produced in China currently, such as Tieguanyin, can be color-selected using a tea color sorter. For the color selection of tea, it is different from the color selection of rice materials and miscellaneous grains. Because of the characteristics of fragile and easy-to-powder tea, the color selection channel of tea color sorting machine can only choose waterfall channel. The purpose is to protect tea leaves from color selection. The process was destroyed.
The tea color sorting machine should be selected from the aspects of production, selection rate and breakage rate, and the suitable tea color sorting machine model should be selected according to the tea yield.
1. The output of the smallest double-layer single-channel tea color sorter is 55-170kg/h. The larger the output of the color sorter, the more the number of channels required, the higher the price
2. The selection rate is the proportion of good tea in the tea raw materials after the color selection. The higher the selection rate, the better the color selection effect, and the higher the quality of the tea after color selection
3. The damage rate refers to the proportion of tea leaves damaged in the color selection process in the tea raw materials. The damage rate is mainly related to the hardness of the tea itself and the structure and performance of the tea color sorting machine. The lower the breakage rate, the less the loss due to color selection.
| tea color sorter model |
| Model |
6CSX-136S |
6CSX-256S |
6CSX-512S |
| Output(kg/h) |
<100 |
<200 |
<400 |
| Carryover Rate(Bad:Good) |
10:1 |
6:1 |
6:1 |
| Sorting Accuracy(%) |
≥99.9 |
≥98 |
≥98 |
| Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.2-1.6 |
2.4-2.6 |
4.8-5.6 |
| Pressure(Mpa) |
0.5-0.7 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<1800 |
<3600 |
<5200 |
| Weight(Kg) |
400 |
720 |
1340 |
| Diamension(mm) |
1035*1934*2223 |
1073*1934*2223 |
2050*2050*2300 |
| Matching power / voltage |
|
|
0.8Kw/380v50Hz
|
Application of Tea Color Sorter
Our company offers a variety of tea color sorters to meet different production needs. In terms of construction,
it is different from the ordinary material color sorting machine, and adopts double-layer re-selection structure,
which greatly reduces the breakage rate of tea and improves the selection rate.
Applicable to Tieguanyin, Longjing, Dahongpao, Pu'er, Oolong, Maojian and many other tea products, leading the industry.
Working Principle
The tea enters the machine from the top hopper, and through the vibration of the vibrator device, the selected material slides down the channel, accelerates down into the observation zone in the sorting chamber, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the output signal of the system is driven to operate the solenoid valve to blow out the colored tea leaves into the waste chamber of the receiving hopper, and the good tea leaves continue to fall into the finished cavity of the receiving hopper. Thereby achieving the purpose of sorting.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,
it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.
