Dried fish color sorter shrimp sorting machine with very compective price
Product Description
According to different color selecting material, shrimp color sorting machine, shrimp skin color sorter,
clove fish color sorter, sheep selenium dishes sorter, Haiqing food and a variety of seafood, seafood
products dry color sorter
| Model |
6SXZ-68L |
6SXZ-68L |
6SXZ-136L |
6SXZ-272L |
| Output |
<600kg/h |
<1000kg/h |
<1200kg/h |
<2400kg/h |
| Carry over Rate(Bad:Good) |
12.5:1 |
12.5:1 |
12.5:1 |
12.5:1 |
| Sorting Accuracy |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
0.7-1.0 |
1.5-2.0 |
1.5-1.8 |
2.5-3.0 |
| Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<500 |
<600 |
<1000 |
<2000 |
| Weight |
310kg |
550kg |
490kg |
920kg |
| Dimension |
2051*1240*1762mm |
3200*2020*810mm |
2037*1540*1550mm |
1922*2430*1349mm
|
|
Technical features:
1. The use of imported high precision 5340 pixel high speed linear array scan color CCD, sorting and identification of more fine;
2. Through the selection of different specifications of slide, no need to replace the light source, can be suitable for various material separation;
3. High quality image processing technology, can be resolved 0.04 square millimeters of small regions; can be a thousand kinds of materials, a number of colors to define color selection, to truly achieve the color selection of seafood;
4. A strong independent intelligent operating system, each model has a memory function can be stored, once again sorting without the need to set up, just store the call, and can get the best sorting results;
5. Can identify the subtle defects in materials, for high precision sorting and ordinary color sorting machine can not be separated from the material to provide a good solution;
6. High brightness, long life LED light source can meet the multi material, multi color color selection, no need to replace the light source;
7. Very powerful hardware and software operating platform, easy to learn, easy to understand, easy to operate, fast, intuitive.
Sea Food Color Sorte Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber
through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid
valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished
goods chamber.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,
it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.

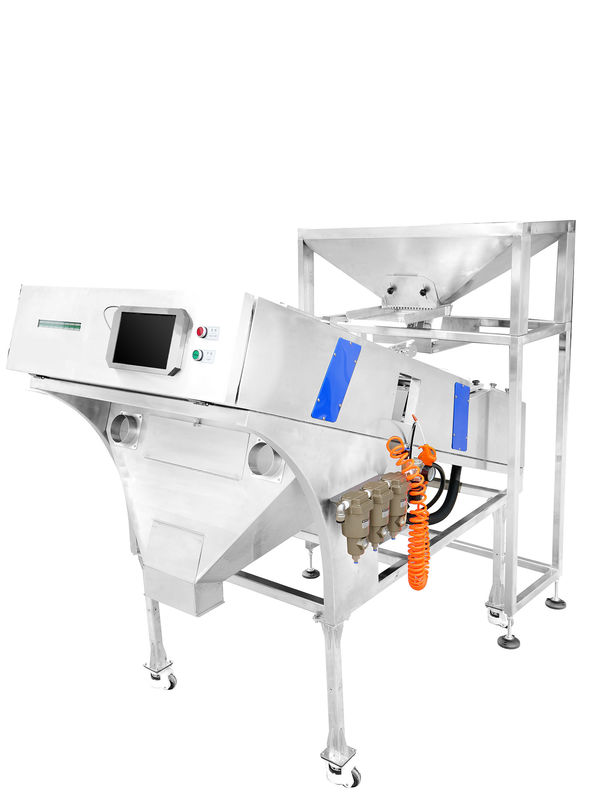

Real Picttures Show
Investment and return: How much can the smallest color sorter make for you?
Invest in 1 mini Color Sorter. For first year, your net profit will increase $18,000. The second year, $28,000
And the fifth year, your net profit will increase $130,000. ( not include the spreads after sorting)
NOTE
24h*7 Multi-language Online Servive
Do you have some questions and want to get professional answer?
Do you want to get free testing?
Welcome to click here or add our whatApp +8618012365661 to contact us.
working principle
Color Sorter's working principle is according to the difference of the optical properties of the material, use photoelectric detection technology automatic sorting the heterochromatic granule from raw material.
Colour sorters or color sorters (sometimes called optical sorters or digital sorters or electronic colour sorters ect.) are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.
Grain (agricultural products) industry
Color sorters are mostly used in sorting grain (agricultural products). The rice sorting industry is the first big market, the rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. The second sorting market is in use for coarse cereals, such as wheat, corn, peanut, different kinds of beans, sesame seeds, etc. Sorting machines improve product quality and add social benefits.
