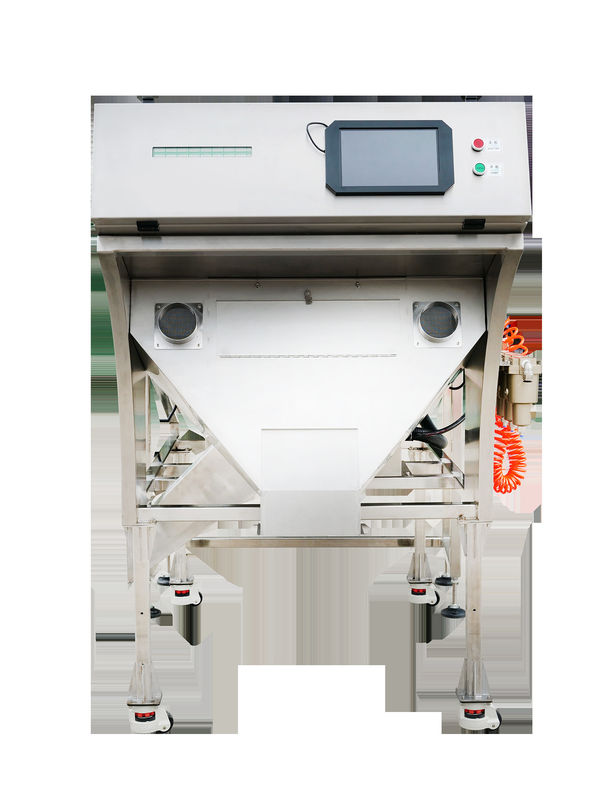

Stainless Steel Shrimp Fish Color Sorting Machine Optical Color Sorter For Shrimp Fish
Product Description
According to different color selecting material, shrimp color sorting machine, shrimp skin color sorter,
clove fish color sorter, sheep selenium dishes sorter, Haiqing food and a variety of seafood, seafood
products dry color sorter
| Model |
6SXZ-68L |
6SXZ-68L |
6SXZ-136L |
6SXZ-272L |
| Output |
<600kg/h |
<1000kg/h |
<1200kg/h |
<2400kg/h |
| Carry over Rate(Bad:Good) |
12.5:1 |
12.5:1 |
12.5:1 |
12.5:1 |
| Sorting Accuracy |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
0.7-1.0 |
1.5-2.0 |
1.5-1.8 |
2.5-3.0 |
| Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<500 |
<600 |
<1000 |
<2000 |
| Weight |
310kg |
550kg |
490kg |
920kg |
| Dimension |
2051*1240*1762mm |
3200*2020*810mm |
2037*1540*1550mm |
1922*2430*1349mm
|
|
Technical features:
1. The use of imported high precision 5340 pixel high speed linear array scan color CCD, sorting and identification of more fine;
2. Through the selection of different specifications of slide, no need to replace the light source, can be suitable for various material separation;
3. High quality image processing technology, can be resolved 0.04 square millimeters of small regions; can be a thousand kinds of materials, a number of colors to define color selection, to truly achieve the color selection of seafood;
4. A strong independent intelligent operating system, each model has a memory function can be stored, once again sorting without the need to set up, just store the call, and can get the best sorting results;
5. Can identify the subtle defects in materials, for high precision sorting and ordinary color sorting machine can not be separated from the material to provide a good solution;
6. High brightness, long life LED light source can meet the multi material, multi color color selection, no need to replace the light source;
7. Very powerful hardware and software operating platform, easy to learn, easy to understand, easy to operate, fast, intuitive.
Sea Food Color Sorte Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber
through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid
valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished
goods chamber.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,
it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.
