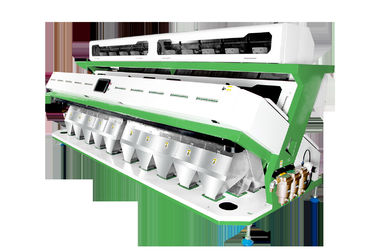

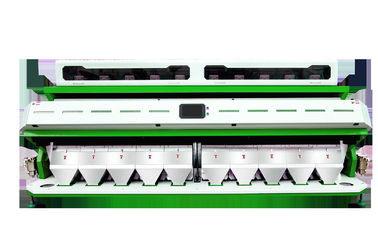

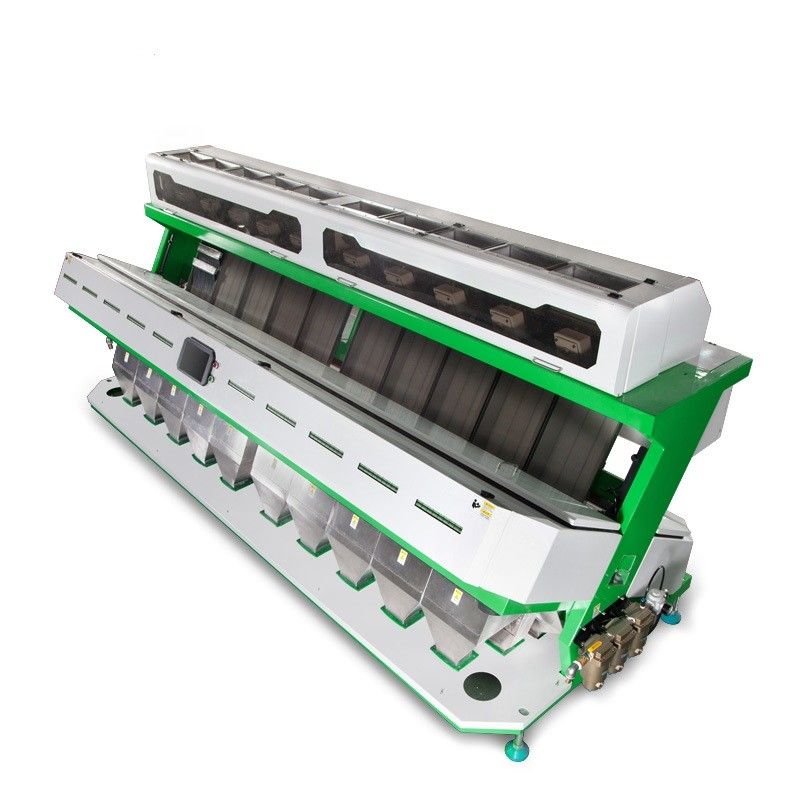

Touch screen glass cullet color sorter processing machine cullet glass color sorter
Product Description
Touch screen glass cullet color sorter processing machine cullet glass color sorter is capable of removing CSP
contaminants (metals optional as well) all at the same time and generates three output products from one input
stream in this all-in-one optical sorter.
Features & Benefits:
Sorts glass cullet by color, is capable of removing CSP contaminants (metals optional as well)
Metal detector upgrade optional
Split configuration optional
Color touch-screen user interface with modem/Ethernet access
Software algorithms to compensate for dirt and dust build-up
Statistics and quality reports download options
Different sort configurations by the touch of a button
| Glass Color Sorter Model |
| Model |
6SXZ-68 |
6SXZ-136 |
6SXZ-272 |
6SXZ-408 |
6SXZ-612 |
6SXZ-680 |
| Output(kg/h) |
<500 |
<1000 |
<2000 |
<3000 |
<4000 |
<5000 |
| Sorting Accuracy(%) |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
| Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9 |
4.8-5.2 |
4.8-5.2 |
8.5-10.9 |
| Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air Consumption(L/min) |
<1000 |
<1800 |
<3200 |
<4800 |
<4800 |
<6100 |
| Weight(Kg) |
260 |
440 |
820 |
1180 |
1620 |
2200 |
| Dimension(mm) |
950*1510*1428 |
1290*1510*1770 |
2010*1530*2100 |
2680*1530*2100 |
3710*1530*2100 |
4200*1530*2250
|
Glass Color Sorte Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber
through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid
valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished
goods chamber.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,
it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.
