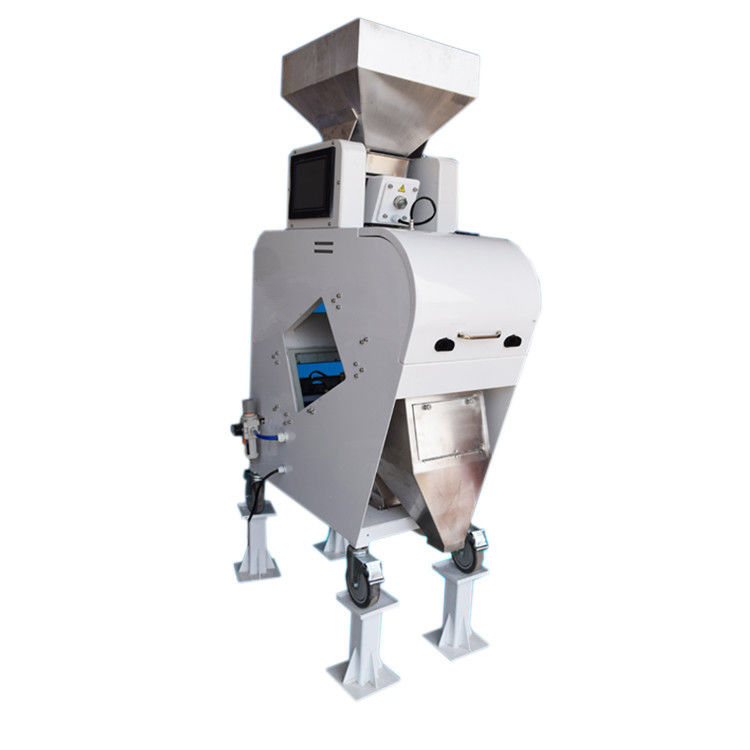

Coffee Bean Color Sorter Machine Mini Coffee Bean Color Sorter Coffee CCD color sorter
We are engaged in offering advanced range of Coffee Sorting Machines suitable to sort out coffee beans of different colors. We have the expertise to manufacture advanced Coffee Bean Color Sorter Machine, which is equipped with track-type CCD color sorter and resort function. Our computer controlled Coffee Color Sorter has high resolution chromatic CCD sensor to accurately identify blue, gray, green, red, and other colors. Its double layer belt type design manages the material efficiently and thus minimize the wastage and increase output. Advanced and high resolution optics augment the performance of our Coffee Sorting Machines.
For other beans like soybean, kidney bean, chickpea, hyacinth bean, lentil, pea and others, we can provide the excellent 99.9% accuracy and processing speed 0.3-10 ton per hour.
For more information about color sorting machines or the process of sorting coffee beans, feel free to contact WhatsApp: + 86-18012365661 or by email box:service@opticalcolorsorters.com
Product Paraments:
| Model |
CQ-32 |
| Executive units |
32 |
| Production Capacity |
250kg-300kg/hour |
| Voltage |
110V-220V/ 50-60HZ |
| Power |
800W |
| Rejection rate |
≥11:1 |
| Sorting accuracy |
≥99.99% |
| Air supply pressure |
0.5-0.8Mpa |
| Air consumption |
≤120L/min |
| Weight |
150kg |
| Dimension |
780*450*1370mm |
| Warranty |
1 year |
Product Features:
- Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
- Multi-function,multi-purpose,widely used for rice,cereal, plastics,chinese medicine.
- High level AI self-learning function,One-key automation,user friendly interface,easy operation.
- Color sorting combined with shape sorting and size sorting, to sort difficult impurities like micro color difference, tiny bad spot etc.
- High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.
- Small and portable, saving space and delivery cost, small machine but super function.
- Imported ejectors, much smaller air consumption, and much better carry over, esp. good for small materials like quinoa, chia, sesame…
- Option: Remote control by smart terminals like cellphone, can realize the off-site controls of the accuracy, production capacity.
- Simple Effective-Installation&Start-up&Commissioning services: remote teaching and guidance via live video online through internet to worldwide.
Para defectos primarios, tenemos una eficiencia del 100% en eliminación de defectos graves o
granos completamente manchados (negros y rojos)
Product Function & Features
Ejector
Independent developed intelligent magnetic control high-frequency ejector has no air leakage problem thanks to the replacement of intelligent lever flexible return technology for traditional pressure return technology.
Cloud Interconnection System
Thanks to AMD cloud service technical platform, remote control, operation, matainence, software upgrade can be achieved and it can detect and solve the LED light, electronical,mechanical and adjustment problems.It also can provide real-time online tracking service for the machine operation monitoring,data acquisition and online instruction.
One Key Intelligent Operation System
The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automaticly set the sorting solution of the material according to the independent caculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor and begeye low distortion lens.
Inlelligent LED Light Control System
It can adjust the brightness of the LED automatically according to the material sorting requirements and enviroment changing due to advanced digital stepless automatic LED light adjustment technology. The best sorting performance will be achieved.
Examples of Sorting

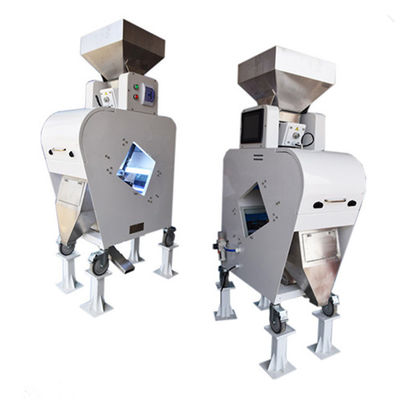

Products Show
