Mini CCD Coffee Bean Color Sorter Optical Coffee Bean Sorting Machine
Coffee color sorter is machinery based on CCD optical sensor used for sorting Arabica coffee beans
andRobusta coffee beans. The most interesting thing in coffee beans sorter it has monochromatic and bi-chromatic both options to detect different colors and remove for the fine quality.
Mini CCD Coffee Bean Color Sorter Optical Coffee Bean Sorting Machine Paraments:
| Model |
CQ-32 |
| Executive units |
32 |
| Production Capacity |
250kg-300kg/hour |
| Voltage |
110V-220V/ 50-60HZ |
| Power |
800W |
| Rejection rate |
≥11:1 |
| Sorting accuracy |
≥99.99% |
| Air supply pressure |
0.5-0.8Mpa |
| Air consumption |
≤120L/min |
| Weight |
150kg |
| Dimension |
780*450*1370mm |
| Warranty |
1 year |
Mini CCD Coffee Bean Color Sorter Optical Coffee Bean Sorting Machine Features:
Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
Multi-function,multi-purpose,widely used for rice,cereal, plastics,chinese medicine.
High level AI self-learning function,One-key automation,user friendly interface,easy operation.
Color sorting combined with shape sorting and size sorting, to sort difficult impurities like micro color difference, tiny bad spot etc.
High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.
Small and portable, saving space and delivery cost, small machine but super function.
Imported ejectors, much smaller air consumption, and much better carry over, esp. good for small materials like quinoa, chia, sesame…
Option: Remote control by smart terminals like cellphone, can realize the off-site controls of the accuracy, production capacity.
Simple Effective-Installation&Start-up&Commissioning services: remote teaching and guidance via live video online through internet to worldwide.
Working Principle:
Examples of Sorting
Sorting Result

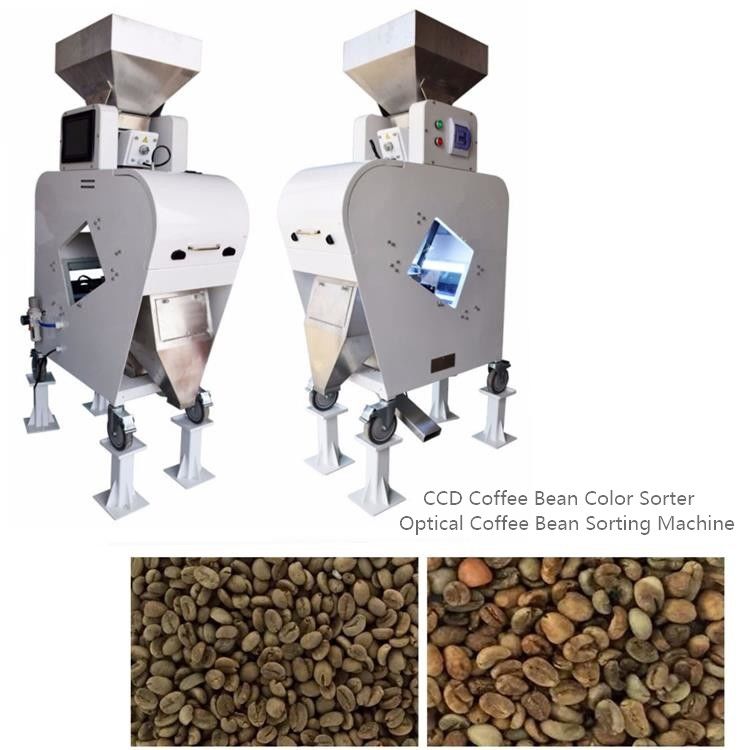

Products Show
Packaging & Shipping
Fixed In Standard export Plywood carton.
Machine surface protection, plastic fastening.
Manufacturer logo printed on the outside of package.
