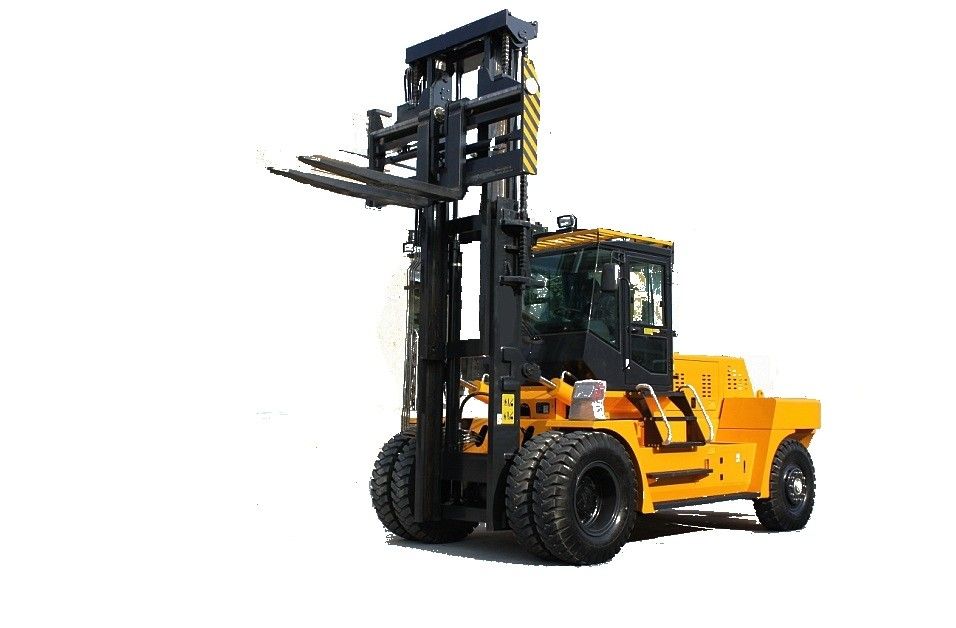

20 ton Heavy Duty Forklift With hydraulic systems / 4 wheel drive forklift
Product Details:
| Place of Origin: |
ANHUI,CHINA |
| Brand Name: |
VMAX |
| Certification: |
ISO CE |
| Model Number: |
CPCD200 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
Negotiable |
| Packaging Details: |
bubble wrap |
| Delivery Time: |
45 DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
3000unit / year |
Contact Now
Detailed Product Description
| Product Name: |
Heavy Duty Forklift |
Max. Lifting Height: |
6000mm |
| Min. Lifting Height: |
3000mm |
Type: |
Manual Pallet Truck |
| Overall Dimensions: |
8790*3020*3600 |
Rated Loading Capacity: |
20000kg |
| High Light: |
warehouse stand up forklift, four wheel drive forklift |
20 Ton Heavy Duty Forklift With Hydraulic Systems / 4 Wheel Drive Forklift
20 ton forklift diesel forklift Product Characteristics
- Integrated central control box the reliability of electric system
- Ergonomical design ensures best operation
- Energy-saving hydraulic system decreases fuel consumption
- High-quality hydraulic hoses, no oil leakage
- Wide-view mast design improves the productivity and safety
| Configuration |
Model |
Unit |
CPCD200 |
| Vehicle configuration |
HNF-200 |
| Performance |
Rated load |
|
20000 |
| Load center |
|
900 |
| Free lift |
mm |
180 |
| Mast tilt angle (front/rear) |
º |
6/12 |
| Overall dimensions |
Length |
mm |
8790 |
| Width |
mm |
3020 |
| Height |
mm |
3600 |
| Mast lifting height |
mm |
3500 |
| Fork size (L*W*H) |
mm |
2000X260X100 |
| Min. turning radius |
mm |
6250 |
| Max. travel speed (with load) |
Km/h |
25 |
| Lifting speed (with load) |
mm/s |
180 |
| Gradeability (with load) |
% |
20 |
| Weight |
Kg |
28000 |
| Tyre |
Front |
|
4X14.00-24/24PR |
| Rear |
|
2X14.00-24/24PR |
| Wheel tread |
Front |
mm |
2200 |
| Rear |
mm |
2390 |
| Wheelbase |
mm |
4000 |
| Min. ground clearance |
mm |
250 |
| Engine |
Model |
|
WD10G220 |
| Rated power/rotate speed |
KW/r.pm |
162/2200 |
| Max. torque/rotate speed |
N.m/r.pm |
850/1450 |
