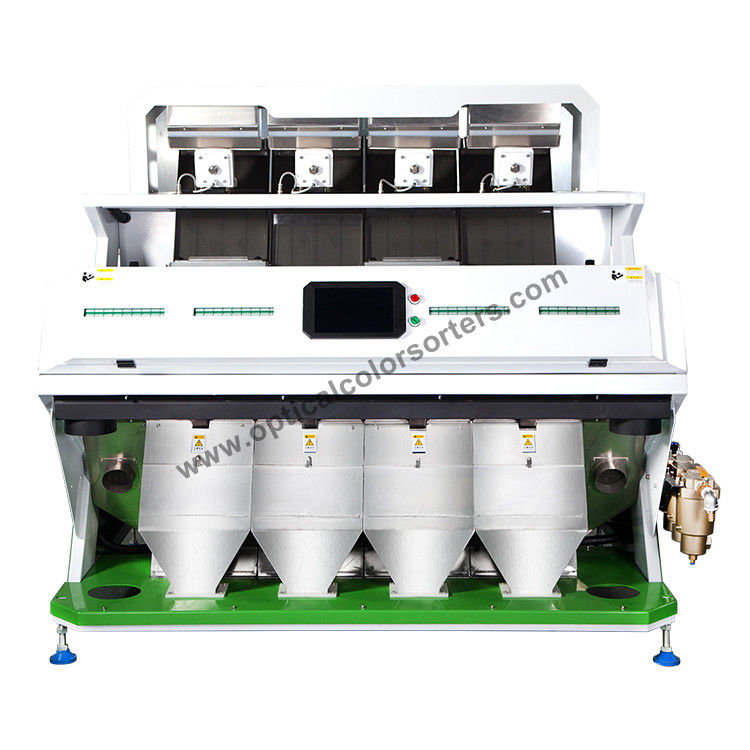

Rice Color Sorter
Product Description
Our intelligent CCD four chutes rice color sorting machine/rice colour sorter in Pakistan. Customer's evaluation:We have cooperated with each other so many times,and the rice optical sorter machines runs steadily.We are satisfied with color sorting results .The rice optical sorting machines have easy operation, salable ejector and timely after-sales service,which is the guarantee of our trust.
The Role of Rice Colour Sorter Machine
1. Improve the quality of your rice. Color sorter can separate defects from rice material, like spotted, yellow, chalky, reddish, paddy stone etc. The price of rice has increased after color sorting. One of our Chinese clients told us that he get double sales after using color sorter.
2. Reduce labor costs. A color sorter can replace several labors.
3. Social benefits. Eating rice after sorting can make humans healthier.
Technical Parameters
| Model |
6SXM-68 |
6SXM-136 |
6SXM-272 |
6SXM-408 |
6SXM-612 |
6SXM-680 |
| Output(t/h) |
0.6-1 |
1.2-2 |
2.4-5 |
4-7 |
6-10 |
8-16 |
| Carry over Rate(Bad:Good) |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
| Sorting Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9
|
4.8-5.2 |
6.6-7.2 |
8.5-10.5
|
| Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air Consumption(L/min) |
<1000 |
<1800 |
<3200
|
<4800 |
<5600
|
<6100 |
| Weight |
260kg |
440kg |
820kg |
1180kg |
1620 |
2200
|
| Dimension |
950*1510
*1428mm |
1290*1510*1770mm |
2010*1530*2100mm |
2680*1530*2100mm |
3710*1530*2100mm |
4200*1530*2250mm |
Examples of Sorting
Product Advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region.
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satisfy to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.
