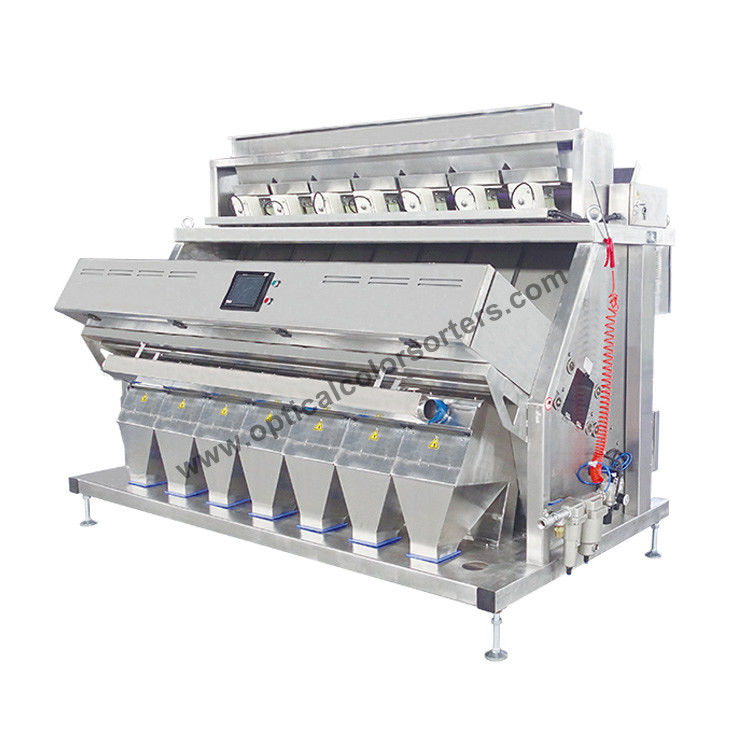

Stainless Steel CCD Plastic Color Sorter
Product Description
By distinguishing the difference of plastic color, the materials of different colors or transparency are separated to obtain pure materials, which greatly improves the material price and the competitiveness of the enterprise. This product is suitable for crushing recycled materials, pellets, etc. It is widely used in the processing of variegated ABS PS PC and other engineering materials, broken bottle caps and bottle flakes.
Product Features
* Top chromatic ccd sensor, high reliability and long life source, american super speed fpga processor;
* Color sorting, shape sorting and material sorting functions combined;
* Most concentrated rejects, thanks to customized hi-tech ejectors;
* Intelligent system self-learning function,easy operation;
* Intelligent ejection system,visualization analysis,3d recognition technology;
* Mass and high speed data transmission system with a strong anti-jamming power and a more stable data transmission. successfully solve a variety of color selections of high difficulties, meet the color sorting needs for high yield products, and provide better color sorting results;
* More stable algorithm-auto image adjustment algorithm,refuse environment disturbance;
* Add sloping chutes for sorter upgrading or production increasing, from one chute to sixteen chutes to meet any different production capacity requirement.
Parameter Table
| Model |
GY3 |
GY5 |
GY7 |
GY10 |
GY12 |
GY16 |
| Executing Unit |
192 |
320 |
448 |
640 |
768 |
1024 |
| Throughput(T/H) |
1.0-3.0 |
1.5-5.0 |
3.0-8.0 |
7.0-12.0 |
8.0-13.0 |
10.0-15.0 |
| Voltage(V) |
110-250V(50-60HZ) |
| Power(KW) |
1.8 |
2.6 |
3.5 |
5 |
6 |
8 |
| Weight(KG) |
748 |
1043 |
1281 |
1792 |
2134 |
2645 |
| Dimension(L*W*H/mm) |
1610*1630*2050 |
2225*1630*2050 |
2980*1630*2050 |
2980*2116*1990 |
2980*2430*1990 |
2980*3058*1990 |
| Sorting accuracy(%) |
≥99.99 |
| Rejection rate(%) |
≥8:1 |
| Air consumption(L/min) |
800-1600 |
1300-2200 |
1800-3600 |
2400-4500 |
2700-5000 |
3300-6000 |
| Notes |
Subject to different impurities of raw materials,parameters listed in above table will charge to some extent |
