Product Description
* Holographic flash camera:260 million pixel holographic flash camera with loop self healing lens.360°perfect panorama reappearance of material, more precise and complete material removal.
* RGB spectrum technology:More than 16 million kinds of flexible color switch, real-time background color adjustment,enhance the sorting effect.
* Shape sorting technology:Original shape sorting algorithm, which achieves the sorting of material with shape variations in material length, size, thickness, whether not single or double.
* Self-collaborative sensing technology:Military-level mass information transmission system, match the dialogue SOC, the transmission rate is highly improved,elimination is more precise and accurate.
* Central position elimination technology:Even pressure on material and less carry-over.
Product Specifications of CCD Tea Color Sorter Machine
| Product name |
Product model |
Power(electric appliance and motor)(kW) |
Power input
(V)
|
Air pressure(Mpa) |
Processing capacity(The following color selection performances are based on Tieguanyin with a purity 2%)(kg/h) |
(L*W*H)
External dimensions
(mm)
|
Weight
(kg)
|
Sorting accuracy
(%)
|
Optimal carryover rate |
Structural design |
| Single layer tea color sorter |
6CSX
-63DM
|
1.0 |
220V 50Hz |
0.6-0.8 |
100-200 |
1030*1485*1538 |
295 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-126DM |
1.5 |
220V 50Hz |
0.6-0.8 |
150-400 |
1360*1485*1538 |
390 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-144DM |
1.5 |
220V 50Hz |
0.6-0.8 |
150-400 |
1360*1485*1566 |
425 |
≥99 |
≥5:1 |
Integral type |
| Multilayer tea color soter |
6CSX-252II |
2.9 |
220V/380V 50Hz/60Hz |
0.6~0.8 |
200-800 |
2880*2150*3100 |
1475 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-378II |
3.8 |
220V/380V 50Hz/60Hz |
0.6~0.8 |
300-1000 |
3324*2150*3166 |
1880 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-252III |
3.6 |
220V/380V 50Hz/60Hz |
≥99.99 |
200-800 |
2880*2540*3800 |
1850 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-378III |
4.7 |
220V/380V 50Hz/60Hz |
0.6~0.8 |
300-1000 |
3480*2540*3800 |
2350 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-378 |
6.2 |
220V/380V 50Hz/60Hz |
0.6~0.8 |
300-1200 |
3822*2490*3830 |
3100 |
≥99 |
≥5:1 |
Integral type |
| 6CSX-378V |
7.5 |
220V/380V 50Hz/60Hz |
0.6~0.8 |
300-1200 |
4040*3790*3840 |
3558 |
≥99 |
≥5:1 |
Split type |
| Multilayer infrared tea color soter |
6CSX-378IIIH2 |
7.5 |
220V/380V 50Hz/60Hz |
0.6-0.8 |
300-1000 |
4100*2520*3780 |
2420 |
≥99 |
≥5:1 |
Integral type |
| Multistage combined tea color soter |
6CSX-378IIHa |
4.1 |
220V/380V 50Hz/60Hz |
0.6-0.8 |
600-1000 |
3900*3050*2620 |
1600 |
≥99 |
≥5:1 |
Split combination |
| 6CSX-378II FHb |
4.1 |
220V/380V 50Hz/60Hz |
0.6-0.8 |
600-1000 |
3900*3050*2620 |
1715 |
≥99 |
≥5:1 |
Split combination |

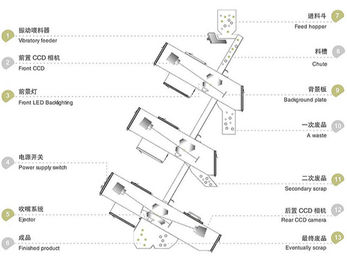

Operational Principle

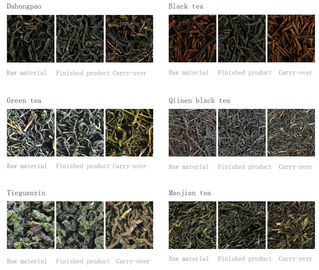

Sorting Example
Device Characteristic
* Holographic flash camera
260 million pixel holographic flash camera with loop self healing lens. 360° perfect panorama reappearance of material, more precise and complete material removal.
* RGB spectrum technology
More than 16 million kinds of flexible color switch, real-time background color adjustment, enhance the sorting effect.
* Intelligent sorting technology
Automatic detection of raw material quality and impurity ratio, intelligently switching sorting model, to meet the needs of different materials sorting.
* Shape sorting technology
0riginal shape sorting algorithm, which achieves the sorting of material with shape variations in material length, size, thickness, whether not single or double.
* Wisdom control screen interface
Wise brain wisdom control screen, more sensitive to operate, better to touch, and render equipment more stable.
* The simplest UI
Simplified operation interface to keep you away from debugging difficulties and complicated operation problems.
* Self-collaborative sensing technology
Military-level mass information transmission system, match the dialogue SOC, the transmission rate is highly improved, elimination is more precise and accurate.
* High end customized solenoid valves
High end customized solenoid valve, up to 12 billion service life reaches as 1ong as 12 billion times,no exhaust and gas leakage.
* Central position elimination technology
Even pressure on material and less carry-over.
* Remote control
Support mobile APP connection to realize remote control and connection.
