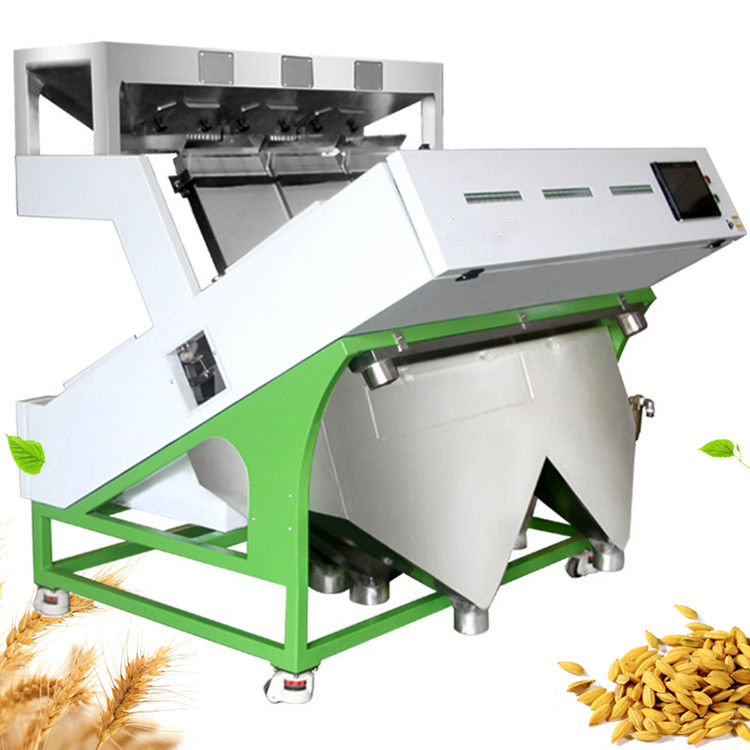

High-resolution CCD optical Grain Color Sorter CCD Wheat Color Sorter Machine
Product Description
Color sorter machines are mostly used in sorting grain (agricultural products). The wheat sorting industry has a very big market,wheat sorting technology is according to the color differences of wheat materials, using a high-resolution CCD optical sensor to separate different stones, wheat, etc. It is the final step after polishing rice with a wheat polisher. Our wheat color sorter machine improve product quality and add social benefits.
High-resolution CCD optical Grain Color Sorter CCD Wheat Color Sorter Machine Technical Parameters
| Model |
6SXM-68 |
6SXM-136 |
6SXM-272 |
6SXM-408 |
6SXM-612 |
6SXM-680 |
| Output(t/h) |
0.6-1 |
1.2-2 |
2.4-5 |
4-7 |
6-10 |
8-16 |
| Carry over Rate(Bad:Good) |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
| Sorting Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9
|
4.8-5.2 |
6.6-7.2 |
8.5-10.5
|
| Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air Consumption(L/min) |
<1000 |
<1800 |
<3200
|
<4800 |
<5600
|
<6100 |
| Weight |
260kg |
440kg |
820kg |
1180kg |
1620 |
2200
|
| Dimension |
950*1510
*1428mm |
1290*1510*1770mm |
2010*1530*2100mm |
2680*1530*2100mm |
3710*1530*2100mm |
4200*1530*2250mm |
Examples of Sorting
High-resolution CCD optical Grain Color Sorter CCD Wheat Color Sorter Machine Advantages
High-resolution CCD optical Grain Color Sorter CCD Wheat Color Sorter Machine Working Principle
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute.
The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Real Pictures Show:
Mounting Dimensions
Our Service
Before Sale Service
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
