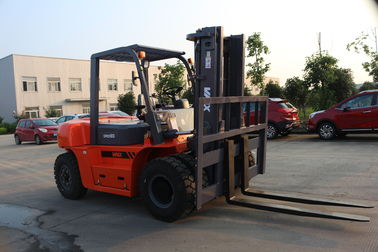

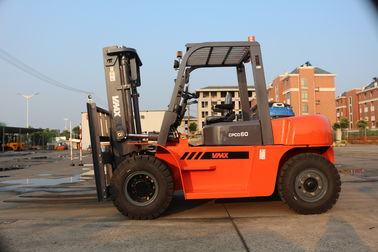

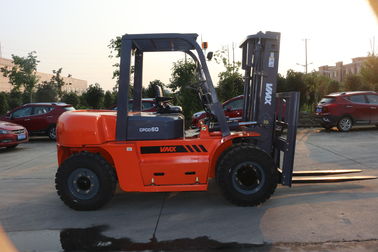

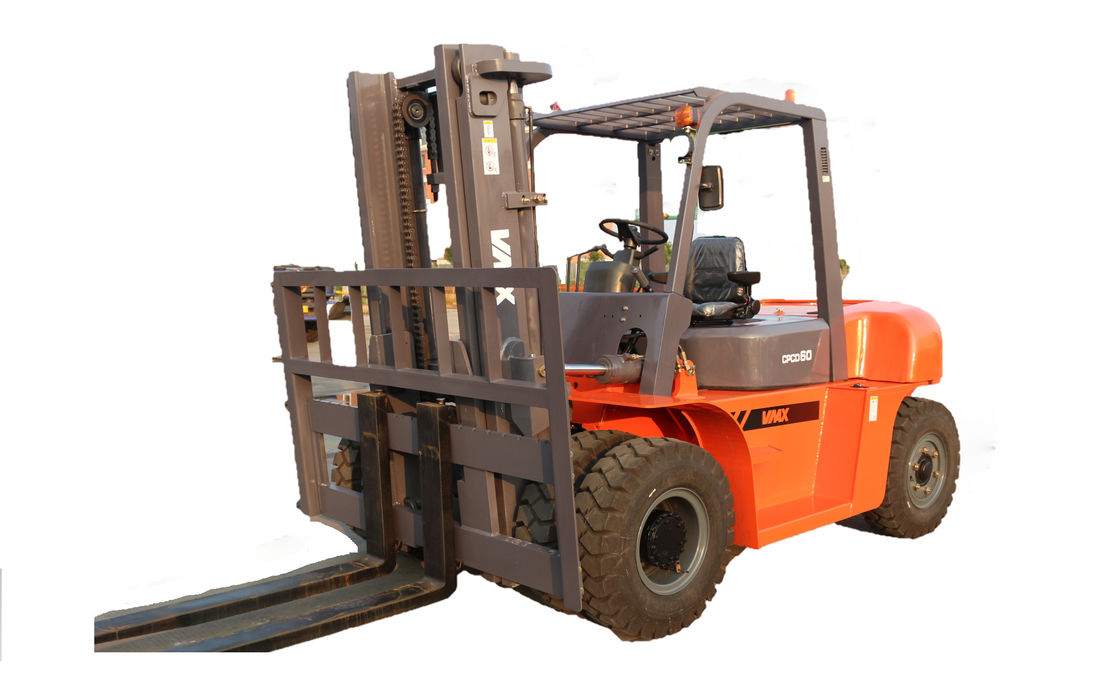

Diesel Forklift Truck Standard Installment:
-- Model CPCD60,load capacity 6000kg.
-- Automatic transmission, 3M 2stage Mast.
-- China engine Chaoyang 6102 , Euro II.
-- 1220mm fork,Pneumatic tyes.
-- Safety seat with steady belt,warning light.
-- Free tool box,spare parts.
Diesel Forklift Truck Characteristics:
- Integrated central control box the reliability of electric system
- Ergonomical design ensures best operation
- Energy-saving hydraulic system decreases fuel consumption
- High-quality hydraulic hoses, no oil leakage
- Wide-view mast design improves the productivity and safety
Diesel Forklift Truck SPECIFICATION
| 5-7T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION |
| Model |
Unit |
CPCD50 |
CPCD60 |
CPCD70 |
| Power type |
|
Diesel |
| Rated capacity |
kg |
5000 |
6000 |
7000 |
| Load center |
mm |
600 |
| Mast Lifting height |
mm |
3000 |
| Free lift height |
mm |
197 |
| Fork size(L*W*T) |
mm |
1220×150×55 |
| Tilting Angles(Front/Rear) |
deg |
6°/12° |
| Front overhang |
mm |
590 |
Exterior Size |
Length without fork |
mm |
3440 |
3573 |
3573 |
| Overall width |
mm |
1990 |
| Mast drop |
mm |
2500 |
| Max.lift |
mm |
4420 |
| Front-wheel Overhead |
mm |
2450 |
| Min Turning Radius |
mm |
3250 |
3300 |
3360 |
| Min.intersecting aisle |
mm |
2960 |
3000 |
3040 |
Speeds |
Max Driving speeds |
km/h |
27/28 |
26/28 |
| Lifting speeds |
mm/s |
545/590 |
395/420 |
325/380 |
| Lowering speeds |
mm/s |
≤600 |
| Max.grade ability |
% |
32 |
27 |
24 |
| Total weight |
kg |
7980 |
8640 |
9350 |
Tires |
Front |
|
8.25-15-14PR |
| Rear |
|
8.25-15-14PR |
| Wheelbase |
mm |
2250 |
Tread |
Front |
mm |
1470 |
| Rear |
mm |
1700 |
| Min.ground clearance |
mm |
190 |
Engine |
Model |
|
Chaoyang 6102 |
| Rated output |
kw/rpm |
73/2200 |
| Rated torque |
N.m/rpm |
290/1650 |
| No.of cylinder |
|
6 |
| Displacement |
L |
5.789
|
| Fuel tank capacity |
L |
140 |
