Coffee Sorting and Sorter Machines Optical Coffee Been Sorting Machines
Color sorting is frequently used to remove the defective coffee beans that were not removed during coffee processing or hulling. Many countries sort coffee beans by hand due to inexpensive labor, but for most countries investment in a color sorting machine, or color separator, is necessary.
The methodology behind color sorting machines is similar.
The color of each coffee bean is quickly measured using a type of CCD camera system and depending on this wavelength measurement the bean is either allowed to flow downward or is shot with a puff of air into the reject pile. Monochromatic machines remove white and black coffee beans since they have a lighter or darker hue than the average. The more specific bichromatic color sorting machines detect and eliminate coffee beans that are white, unripe, broken, insect damaged, and black.
For more information about color sorting machines or the process of sorting coffee beans, feel free to contact WhatsApp: + 86-18012365661 or by email box:service@opticalcolorsorters.com
Product Paraments:
| Model |
CQ-32 |
| Executive units |
32 |
| Production Capacity |
250kg-300kg/hour |
| Voltage |
110V-220V/ 50-60HZ |
| Power |
800W |
| Rejection rate |
≥11:1 |
| Sorting accuracy |
≥99.99% |
| Air supply pressure |
0.5-0.8Mpa |
| Air consumption |
≤120L/min |
| Weight |
150kg |
| Dimension |
780*450*1370mm |
| Warranty |
1 year |
Product Features:
- Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
- Multi-function,multi-purpose,widely used for rice,cereal, plastics,chinese medicine.
- High level AI self-learning function,One-key automation,user friendly interface,easy operation.
- Color sorting combined with shape sorting and size sorting, to sort difficult impurities like micro color difference, tiny bad spot etc.
- High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.
- Small and portable, saving space and delivery cost, small machine but super function.
- Imported ejectors, much smaller air consumption, and much better carry over, esp. good for small materials like quinoa, chia, sesame…
- Option: Remote control by smart terminals like cellphone, can realize the off-site controls of the accuracy, production capacity.
- Simple Effective-Installation&Start-up&Commissioning services: remote teaching and guidance via live video online through internet to worldwide.
Para defectos primarios, tenemos una eficiencia del 100% en eliminación de defectos graves o
granos completamente manchados (negros y rojos)
Product Function & Features
Ejector
Independent developed intelligent magnetic control high-frequency ejector has no air leakage problem thanks to the replacement of intelligent lever flexible return technology for traditional pressure return technology.
Cloud Interconnection System
Thanks to AMD cloud service technical platform, remote control, operation, matainence, software upgrade can be achieved and it can detect and solve the LED light, electronical,mechanical and adjustment problems.It also can provide real-time online tracking service for the machine operation monitoring,data acquisition and online instruction.
One Key Intelligent Operation System
The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automaticly set the sorting solution of the material according to the independent caculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor and begeye low distortion lens.
Inlelligent LED Light Control System
It can adjust the brightness of the LED automatically according to the material sorting requirements and enviroment changing due to advanced digital stepless automatic LED light adjustment technology. The best sorting performance will be achieved.
Examples of Sorting

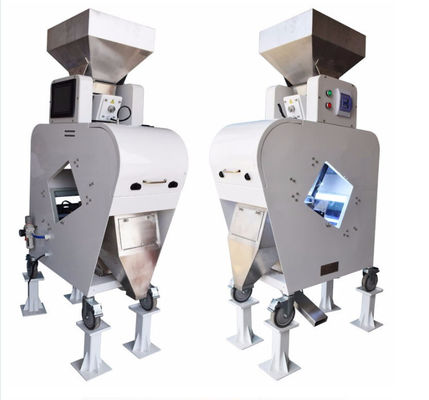

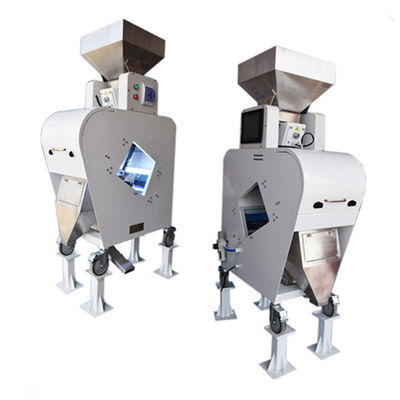

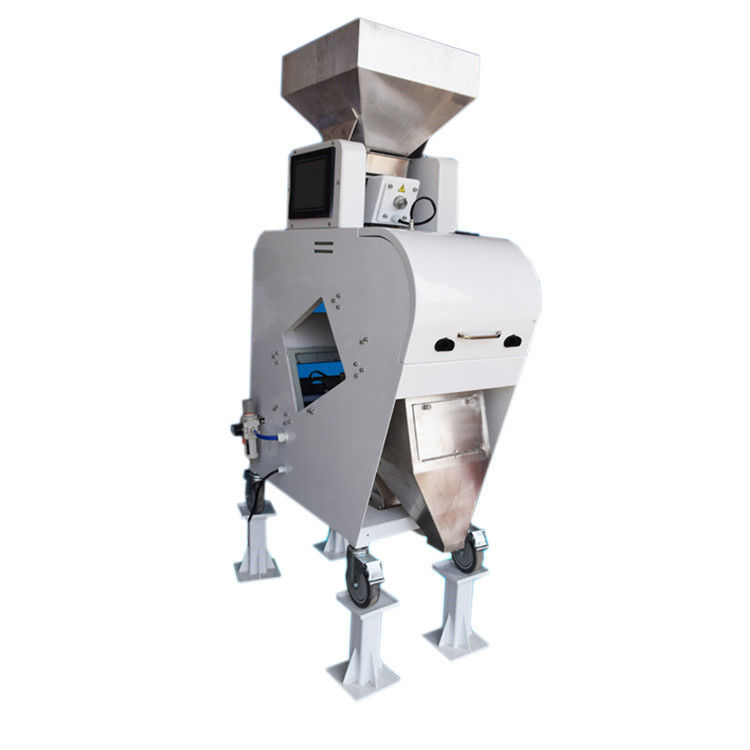

Products Show
