Here are the details of standard configurations:

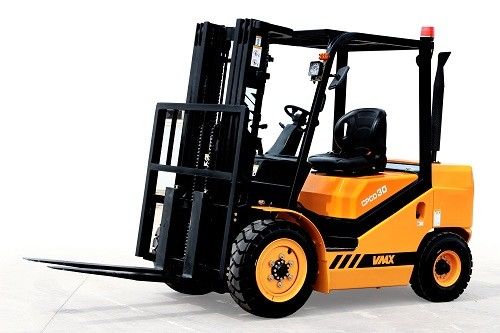

Diesel forklift truck with 3,500kg load capacity
Model Number: CPCD35
Equipped with China engine C490BPG,Hydraulic transmission with TCM-technology
Standard with 2-stage wide-view mast, lifting height is 3,000mm
Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.
Back-up buzze, rearview mirror, full set of lights and so on.
Diesel Powered Forklift features:
* Load capacity 3500kg with Isuzu c240 engine.
* 3M lift height,1.07m fork,solid tyres.
* Automatic,12months warranty.
* Brandnew
| 3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION |
| Model |
Unit |
CPC35/CPCD35 |
| Power type |
|
Diesel |
| Rated capacity |
kg |
3500 |
| Load center |
mm |
500 |
| Mast Lifting height |
mm |
3000 |
| Free lift height |
mm |
175 |
| Fork size(L*W*T) |
mm |
1070×125×45 |
| Tilting Angles(Front/Rear) |
deg |
6°/12° |
| Front overhang |
mm |
485 |
Exterior Size |
Length without fork |
mm |
2680 |
| Overall width |
mm |
1225 |
| Mast drop |
mm |
2065 |
| Max.lift |
mm |
4250 |
| Front-wheel Overhead |
mm |
2070 |
| Min Turning Radius |
mm |
2420 |
| Min.intersecting aisle |
mm |
2100 |
Speeds |
Max Driving speeds |
km/h |
18.5/20 |
| Lifting speeds |
mm/s |
470/520 |
| Lowering speeds |
mm/s |
550/520 |
| Max.grade ability |
% |
20 |
| Total weight |
kg |
4300 |
Tires |
Front |
|
28*9-15-12PR |
| Rear |
|
6.5-10-10PR |
| Wheelbase |
mm |
1700 |
Tread |
Front |
mm |
1000 |
| Rear |
mm |
970 |
| Min.ground clearance |
mm |
110 |
Engine |
Model |
|
XINCHANG490BPG |
| Rated output |
kw/rpm |
37/2650 |
| Rated torque |
N.m/rpm |
148/1800 |
| No.of cylinder |
|
4 |
| Displacement |
L |
2.54 |
| Fuel tank capacity |
L |
52
|
