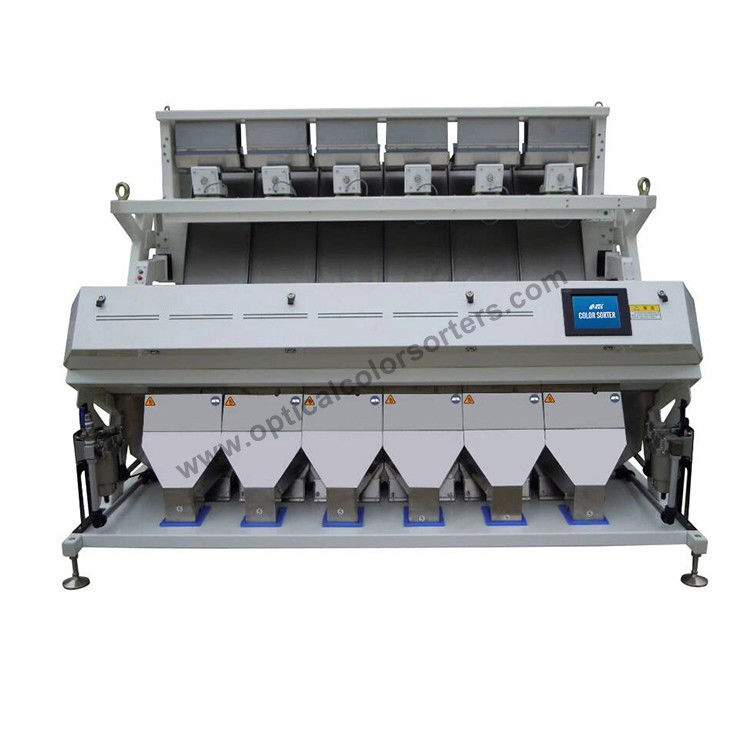

Rice Color Sorting Machine
Product Description
Automatic rice color sorting machine is designed and manufactured by Wuxi Bird Machinery Technology Co., Ltd , which is one of the Top enterprises of Chinese color sorter industry. The automatic rice color sorter machine ranges from 1 channel to 7 channels , and each channels has 64 channels. This type machine is very classical, it has been sold for over 10 years ,and proved to be with excellent accuracy and stability.
Technical Parameters
| Model |
6SXM-64 |
6SXM-128 |
6SXM-320 |
6SXM-256 |
6SXM-320 |
6SXM-384 |
6SXM-448 |
| Yield (t / h) |
1-2 |
2-4 |
3-6 |
3-9 |
3-10 |
4-12 |
5-15 |
| Carryover (bad: good) |
15:1 |
15:1 |
15:1 |
15:1 |
15:1 |
15:1 |
15:1 |
| Choose the net rate (%) |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
| Power supply (v / Hz) |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
| Power (Kw) |
0.5-1.0 |
0.8-1.5 |
1-2.0 |
1-3.0 |
1.5-3.5 |
1.5-4.0 |
2-4.5 |
| Air pressure (Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air consumption (L / min) |
<480 |
＜960 |
<1440 |
＜1920 |
＜2400 |
＜2880 |
＜3360 |
| Weight (Kg) |
350 |
500 |
700 |
850 |
1000 |
1100 |
1400 |
| Dimensions (mm) |
846*1607*1953 |
1250*1607*1953 |
1582*1607*1953 |
1920*1607*1953 |
2248*1624*2175 |
2596*1607*1953 |
2924*1624*2175 |
Note: The above parameters are based on rice, indica rice, long grain rice, round grain rice output Single channel color sorter at 1-3T / h situation results yield will vary depending on the raw material impurity rate.
Mounting Dimensions
Examples of Sorting
Product Advantages
1. The industry's unique light Harmonia color selection mode
Has a good effect for high-end color sorter color sorting requirements shallow yellow, spots, dark rice, a carryover of up to 1: 1 or more, the second can be achieved with a ratio of 15: 1 or more (bad: good) , this mode can be achieved with a white belly shallow yellow signal separation, the election does not yellow with white, the technology industry is absolutely leading position.
2. Color mode
Can meet all kinds of rice processing requirements for color selection, choose color, spots, and other impurities out of a ratio of up to 1: 1 or more, the second with a ratio up to 15: 1 or more (bad: good).
3. White belly election mode
Achieve further optimized color selection effect, choose a white core with a ratio up to 1: 1 or more, the second with a ratio up to 25: 1 or more; choose whole grain white, all yellow with a grain of up to 1 ratio : 1 or more, the second with a ratio up to 30: 1 or more (bad: good).
4. The operating system
New optimized user interface, easy to learn, including "backup plan", "recovery plan" and other functions, convenient parameter customers in the misuse of automatically restore the original color selection parameter disorder.
5. Image acquisition system
5088 international cutting-edge industries dedicated full-color high-speed line scan imaging CCD sensor, the top international supply consultation tailored special lens color selection accurately identify subtle lesions 0.04mm2 meet belly white, white core while sorting, a separate high-sorting color selection requirements.
6. The light source
Latest Original Smart LED Cold shadowless light system designed to allow small spots, shallow yellow, white belly, white core, black pin-point escape detection, identification easier and easier to judge, sorting effect is more accurate, long design life, high luminous efficiency, stability and strong anti-interference, boot without preheating.
7. The image processing system
Using the latest multi-mode smart complex algorithms for rice-based small spots, shallow yellow, white belly, white core, pin-point blackheads and other heterochromatic tablets, providing a more flexible sorting combination regimen with higher precision color selection with than the lower.
8. The material system
For the different needs of customers at home and abroad, the hopper has a "big fight", and each separate "small hopper" in two matching program, easy to install large bucket, small bucket according to customer requirements for color selection is changed to "three color options" model.
Why Choose Our Rice Color Sorting Machine ?
1) Designed and manufactured by a major Chinese color sorter company who has been devoted in color sorter Manufacture for over 10 years, the technology is mature and the machine is long time tested by the market
2) Famous of high accuracy and persistence
3) All our machines can be customized, including Italian matrix ejectors, Japanese SMC ejectors, Japanese Nikon cameras, etc
4) OEM is available for all of our machines
5) Engineers available to provide installation and after sale service in all countries.
