Place of Origin: | China |
Brand Name: | BANGHAO |
Certification: | ISO9001 |
Minimum Order Quantity: | 1ses |
---|---|
Price: | Negotiable |
Packaging Details: | 3000 sets per year |
Delivery Time: | 15 day after we receive your deposit |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 3000 sets per year |
Product Name: | Rice Color Sorter | Type: | Grain Processing Equipment, Single Rice Mill, Food Processing Machinery, Grain Processing Machine |
---|---|---|---|
Voltage: | 220V 50HZ, 380V, 220V/380V, 220v/50hz, Customized | Application: | Rice Processing, Sorting, Wheat, Grain Cleaning And Separating |
Function: | Color Sorter, Rice Milling | Usage: | Food Industry , Rice Sorting, Rice Milling |
Certification: | ISO9001, ISO CE, BV | Condition: | New |
Color: | As Photos Or Customized | Sorting Accuracy(%): | ≥99.99 |
Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Overseas Service Center Available, Field Maintenance And Repair Service |
High Light: | rice colour sorting machine,rice colour sorter |

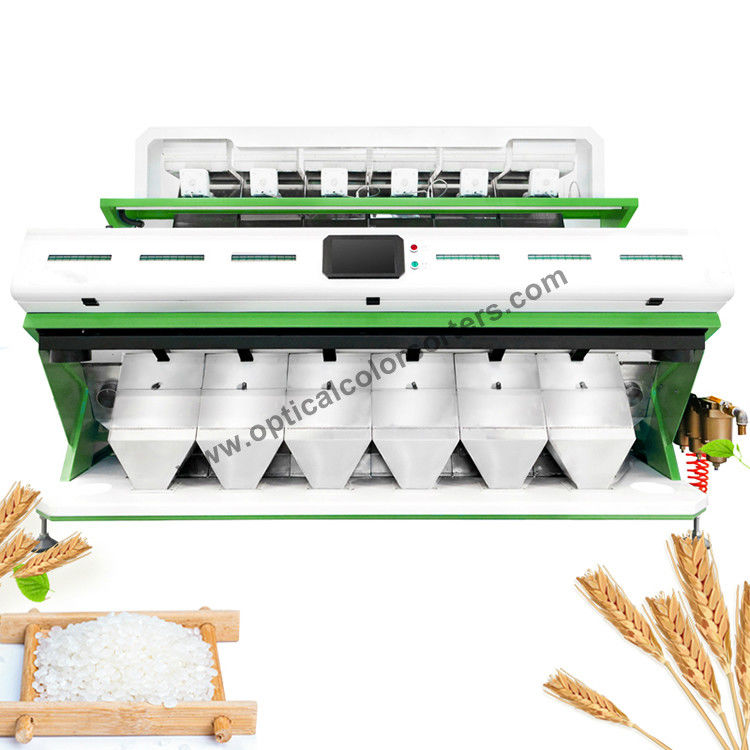

Rice CCD Color Sorter Machine
Product Description
CCD color sorter machine is one of important process for rice processing. After rice milling process, we get brown rice. And the rice color is not the same. On this time we will need to use rice color sorter for choosing good color rice. And then we can get good appearance rice. When we go to the market we will see that the rice for sale all with good color. That is the rice color sorter machine function.
We have been acclaimed as a noteworthy organization involved in offering high grade rice CCD color sorter machine to our clients. The offered machine is manufactured using premium quality components that are tested by our vendors' adept experts on various aspects. Additionally, the provided machine is highly appreciated among our clients due to its flawless operation. The offered machine is used to remove impurities from the rice in several rice mills. In addition to this, the offered rice color sorter machines can be purchased from us in bulk at nominal prices.
Technical Specifications
Model | 6SXZ-68 | 6SXZ-136 | 6SXZ-272 | 6SXZ-408 | 6SXZ-612 | 6SXZ-680 |
Output(kg/h) | <500 | <1000 | <2000 | <3000 | <4000 | <5000 |
Sorting Accuracy(%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
Voltage (v/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
Power Supply(Kw) | 1.0-1.3 | 1.4-1.8 | 2.5-2.9 | 4.8-5.2 | 4.8-5.2 | 8.5-10.9 |
Pressure(Mpa) | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Air Consumption(L/min) | <1000 | <1800 | <3200 | <4800 | <4800 | <6100 |
Weight(Kg) | 260 | 440 | 820 | 1180 | 1620 | 2200 |
Dimension(mm) | 950*1510*1428 | 1290*1510*1770 | 2010*1530*2100 | 2680*1530*2100 | 3710*1530*2100 | 4200*1530*2250 |
Remove black,chalky broken rice,paddy yellow ,stone and moldy out from rice.
Remove paddy, stone, reddish and chalky out.
Product Advantages
1. The system features a high quality reject system and premium LED light system. The rice CCD color sorter machine is available in a variety of configurations ranging from a single chute to a 12 chute model to meet your rice processing demands.
2. High Resolution Colour CCD Image Acquisition System – The high resolution CCD system has the sensory ability of human eye with a maximum resolution is up to 0.15mm. Coupled with a high precision lens, the system captures clear images and identifies small defects and spots on raw materials.
3. Flexible Configuration & Variable Light Source – The LED lighting system has a long service life, low energy consumption and consistent performance. The light source can also be customized, based on the requirements of the customer and raw materials being processed.
Working Principle
Color sorter's working principle is according to the difference of the optical properties of the material, use photoelectric detection technology automatic sorting the heterochromatic granule from raw material.
Colour sorters or color sorters (sometimes called optical sorters or digital sorters or electronic colour sorters ect.) are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.
CCD Rice Sorting Problems Solutions
