Place of Origin: | China |
Brand Name: | BANGHAO |
Certification: | ISO9001 |
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Boxes, Vacuum Aluminum Packing |
Delivery Time: | 15 days after we receive your deposit |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 3,000 sets per year |
Name: | Tea Color Sorter | Type: | Tea Processing Equipment |
---|---|---|---|
Voltage: | 220V / 380V / 415V, 220V/50HZ, AC220V 50Hz, 220V / 50Hz, 380V/Customized | Application: | Tea Color Sorting, Grain Cleaning And Separator |
Feature: | High Capacity High Accuracy | Sorting Accuracy: | >99.98%, >99% |
Air Pressure: | 0.6-0.8Mpa | Accuracy: | More Than 99.99% |
Function: | Tea Color Sorting, Grain Cleaning And Separator | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Overseas Service Center Available, Video Technical Support |
Warranty: | 1 Year | ||
High Light: | tea colour sorter machine,ccd color sorter machine |

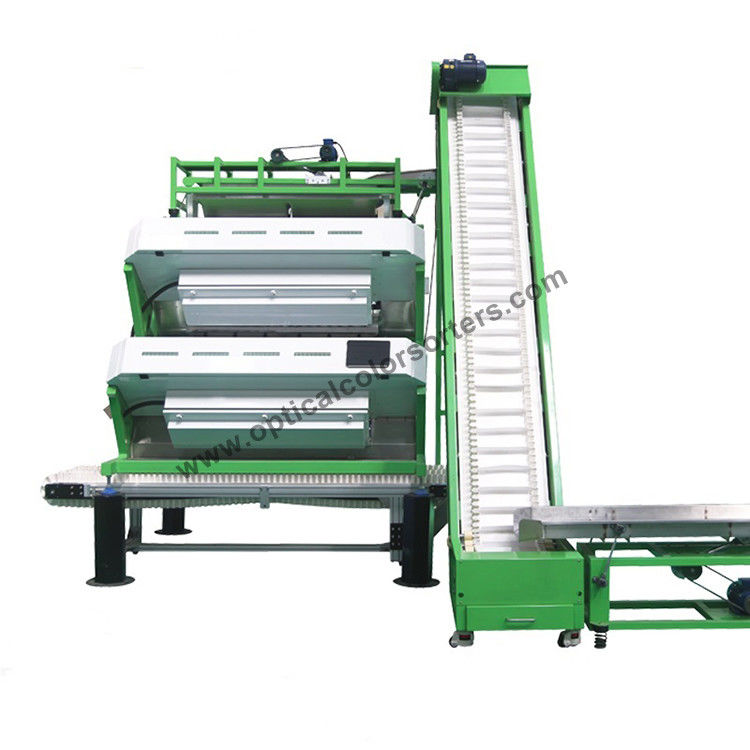

Multilayer Color Sorter Machine
Product Description
Multilayer tea color sorter machine is a high-tech optoelectronic machinery and equipment, which is based on the color difference between tea stalk, yellow leaf and the accepted, used high resolution CCD optical sensor to featured.
Multilayer color sorter machine used to black tea, green tea, white tea, dark tea, Tieguanyin, Pu'er tea and other varieties. It used the new anti-rust chutes, non-toxic harmless, in line with international food safety standards, used tea professional channel, not blocking material, smooth and even decline, greatly reducing the rate of broken tea, double layer sorting can achieve sorting twice, reduce the feeding time, color sorting performance more accurate, higher output. True color sensor, the best sorting equipment for the tea industry.
Technical Parameters
Model | 6CSX-256S Tea Color Sorter |
Output(kg/h) | <200 |
Carryover Rate(Bad:Good) | 6:1 |
Sorting Accuracy(%) | ≥99.0 |
Voltage (v/Hz) | 220V 50HZ |
Power Supply(Kw) | 2.4-2.6 |
Pressure(Mpa) | 0.5-0.7 |
Air Consumption(L/min) | <3600 |
Weight(Kg) | 720 |
Diamension(mm) | 1073*1934*2223 |
Examples of Sorting
Product advantages
1. Linear array CCD full color sorting technology, high resolution identify,high speed sorting, identify more precise.
2. Visible full color spectral distribution, free to adjust the spectral region.
3. Support synchronized for multi-tasking,a variety of modes of color sorting, support synchronized to meet the election, anti-election, a variety of colors at the same time sorting, the yellow film in the tea, white, black,tea stalk and other sorting success at the same time.
4. Integrates shape difference technology, improving the accuracy of tea leaves sorting quality.
5. To overcome overcome the current technology can not solve problems, such as Tieguanyin sorting etc. Achieve intelligent, mechanized.
6. Powerful intelligent software operating platform, easy to learn and understand, suitable for all levels of personnel operations.
7. Domestic unique color sorting + shape sorting mode, for the color of tea close to twisted tea and leaf foliage to carry out a better distinction, so that the sorting performance is better.
8. Double Layer 4 Chutes Tea Color Sorter has a large output with 100kg per hour, suitable for home or small and medium-sized tea processing plants.
The Principle of Multi-layer Tea Color Sorter Machine
The tea enters the machine from the top hopper, and through the vibration of the vibrator device, the selected material slides down the channel, accelerates down into the observation zone in the sorting chamber, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the output signal of the system is driven to operate the solenoid valve to blow out the colored tea leaves into the waste chamber of the receiving hopper, and the good tea leaves continue to fall into the finished cavity of the receiving hopper. Thereby achieving the purpose of sorting.
Multilayer Color Sorter Machine Problems Solutions
