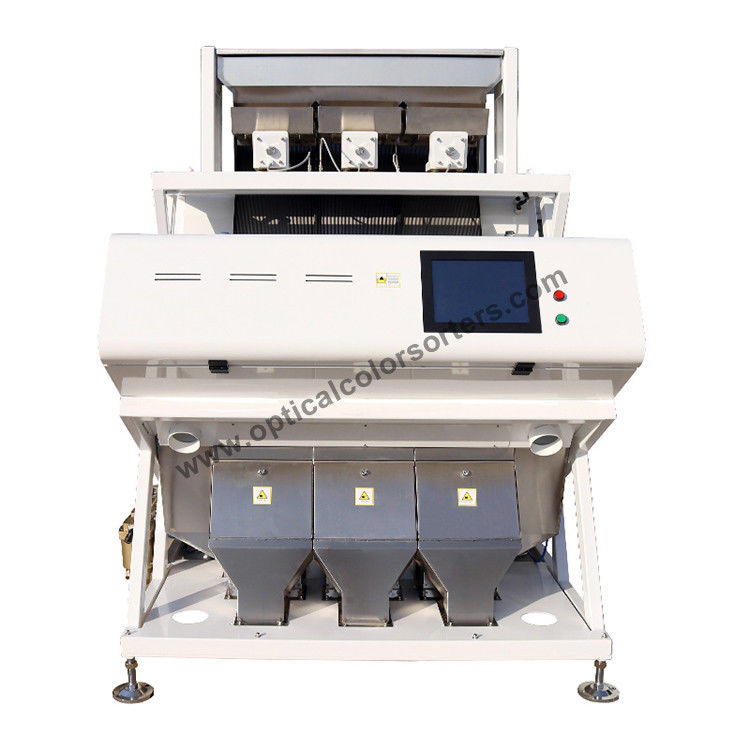

Chute Color Sorting Machine
Product Description
Color Sorter also named optical color sorting machine or optical sorting machine, it is according to the color differences of granular materials, using high-resolution CCD optical sensor to drive solenoid valve to sorting different granular materials.
Latest technology , 1 chute to 12 chute available. 63 channels to 756 channels.Our chute color sorting machine has been widely used in many industry in the world.This type machine is very classical, it has been sold for over 10 years ,and proved to be with excellent accuracy and stability.
Technical parameters
| Channels |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
| Output(t/h) |
1-2 |
2-4 |
3-6 |
3-9 |
3-10 |
4-12 |
5-15 |
| Carryover (bad:good) |
15:1 |
15:1 |
15:1 |
15:1 |
15:1 |
15:1 |
15:1 |
| Accuarcy |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
|
Voltage
(v/Hz)
|
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
| Power(Kw) |
0.5-1.0 |
0.8-1.5 |
1-2.0 |
1-3.0 |
1.5-3.5 |
1.5-4.0 |
2-4.5 |
|
Air pressure
(Mpa)
|
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Consumption
(L/min)
|
<1000 |
＜2000 |
<2300 |
＜2500 |
＜3000 |
＜3600 |
＜4500 |
| Weight(Kg) |
350 |
400 |
500 |
600 |
800 |
1000 |
1200 |
|
Dimensions
(mm)
|
846*1607*1953 |
1250*1607*1953 |
1582*1607*1953 |
1920*1607*1953 |
2260*1607*1953 |
2596*1607*1953 |
2934*1607*1953 |
Examples of Sorting
Offering ideal solution for Rice, Wheat, Corn, Maize, Millet, Sorghum, Quinoa, Buckwheat, Oats, Barley, Cardamon, Sesame Seeds, Groundnut, Peanut, Soybean, Coffee Bean, Pea, Mung Bean, Lentil, Vicia Faba, Fava Bean etc.
Advantages
1) Designed and manufactured by a major Chinese color sorter company who has been devoted in color sorter Manufacture for over 10 years, the technology is mature and the machine is long time tested by the market
2) Famous of high accuracy and persistence
3) All our machines can be customized, including Italian matrix ejectors, Japanese SMC ejectors, Japanese Nikon cameras, etc
4) OEM is available for all of our machines
5) Engineers available to provide installation and after sale service in all countries.
Technology Features
1) The particular light difference sorting model works great on the light beige, speckled and dark rice. The first time sorting effect can reach 1:1, the recycling carryover can reach 15:1, and it can reject the difference without rejecting the belly white rice. This technique is absolutely the most advanced in this industry.
2) Under the belly white model, the first time sorting carryover is above 1:1, the recycling carryover is above 25:1.
3) The top international DSP+FPGA process technique ensures the high working efficiency and accurate calculating, and it is easy to be ungraded and maintained.
4) Top international 2048 high-speed line scan CCD image sensors and tailor-made American cameras make sure that 0.04mm2 tiny scab can be precisely identified.
5) The newest smart LED cold light sources with no shadow make the recognition easier and the sorting more precise, and it is endowed with long serving life and no need to preheat.
6) The LED air cooling system significantly increases the service life of LED.
7) The only one in this industry who own intellectual property on the solenoid valve, our valves are made of Special high strength material, it has the advantages of strong sucking ability, no residual magnetism, linear flow, price blow, high consistency, the t working frequency can reach 1200HZ per second, the shortest response time can be 0.6ms, and the service life can reach 5-10 billion times. They can greatly decrease the carryover, cut 20%-30% of air consumption.
8) Powerful operation system, very easy to operate, truly achieved man-machine interaction.
Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
