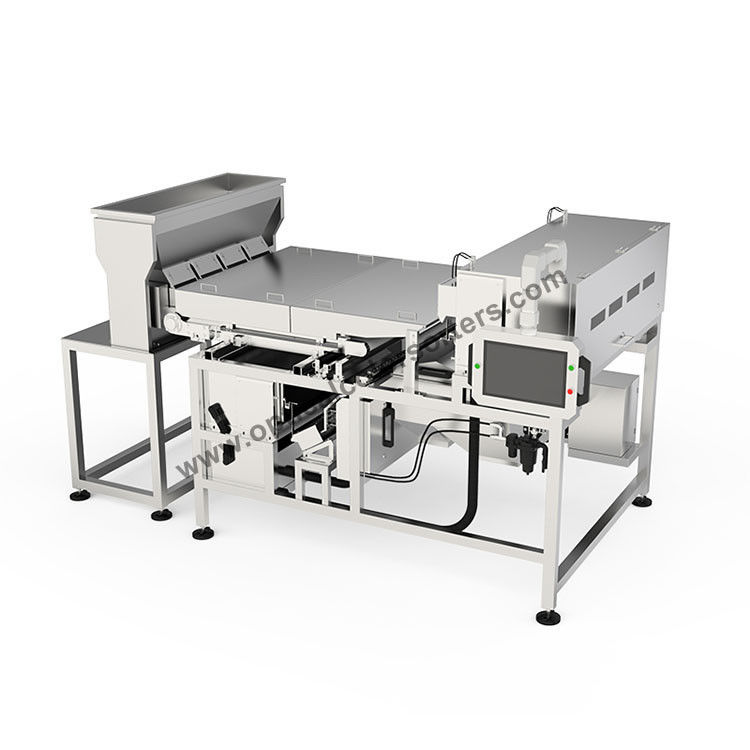

Belt-type Color Sorter Machine
Product Description
Belt-type color sorter machine: The material after color separator of a port (bin) smooth transfer to another port (outlet), outlet is equipped with high speed camera acquisition card, material after industrial camera collection, in the end of the color separator will be color difference bad material separation of impurities. The entire process, track color separator will play a role of the color to choose. Caterpillar color separator can be divided into double track color separator and single track color separator.
Technical Parameters
Examples of Sorting
Belt-type Color Sorter Machine is suitable for applications in food processing companies of nuts, seafood, fresh cut vegetables, dried fruits, dried fruits, fresh fruits, freeze-dried fruits and vegetables.
Technology Features
Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Color Sorter Problems Solutions
