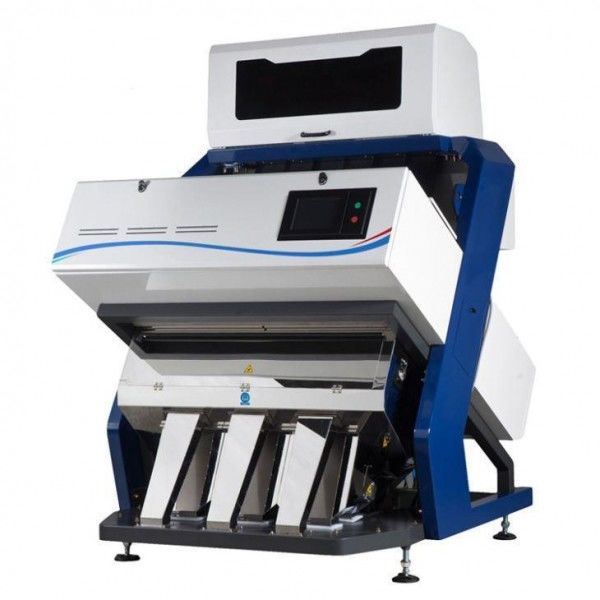

2*2-30*30mm intelligentized Plastic Sorting machine specially produced for recycling industry
This NIR Optical Plastic Sorting Machine is equipped with advanced and specialized color selection detection algorithm software, which is specifically designed for different materials to meet the selection requirements of materials of different shapes and colors. Due to the high performance, all parts are guaranteed to be stable and reliable, effectively improving the stability of the machine. According to different material shapes, it is equipped with special type of slides. It has fast flow rate, large flow and easy maintenance. On the other hand, our NIR Optical Plastic Sorting Machine adopts top quality special industrial lens, which has longer service life for use. And the color selection detection algorithm software specially is designed for rice accurately realizes signal conversion to ensure effective rejection of tiny lesions and light yellow particles.
Feature
This NIR Optical Plastic Sorting Machine uses high-end embedded processor chip, which effectively improves the control speed and color selection accuracy. And the high-speed DSP digital image processing technology makes sure that the detection speed is faster and recognition rate is higher.
This machine adopts high-pixel image sensor, equipped with high-speed automatic identifying and analysing system, it can sort needed material from rejected one, so that material quality is greatly promoted.
Application:
- PET bottle flake
- HDPE/LDPE bottle flake
- ABS/PS/PC engineering plastic
Sorting Result
Operational Principle
Material goes through hopper into the machine, shaken by the vibration device, the material slides through distributing box, an then pass through detector and background board.
Under the light resource, the light sensor receives compound light from the material, and the system sends out signals, driving the movement of the ejection valve, and remove off color material to the eject chamber. Accepted material freely falls down to the finished-product chamber, so that the material is precisely sorted.
Device Characteristic
Separate various colors;
Efficiently sort needed material from rejected one;
Adopts latest software, highly precise sorting, with low product loss;
Strengthened spout and air jet design for high per-cent contaminated material, durable and dependent;
Adopts high-resolution image sensor, equipped with high-speed automatic identifying and analysing system;
New type touch-screen operation platform, big colorful screen and user-friendly operation interface, can easily change sorting precision to the best quality;
Except for some traditional functions like double-face sorting and second-time sorting, it also has more intelligentized functions, which simplify operation and handle.
Technical Specifications
|
Model
|
Throughput
|
Material size
|
Power
|
Machine size
|
Weight
|
|
Rock 180F
|
1-3T/H
|
2*2-30*30mm
|
1.8KW
|
1455*1597*2142mm
|
940KG
|
|
Rock 300F
|
2-5T/H
|
2*2-30*30mm
|
2.4KW
|
2075*1597*2142mm
|
1330KG
|
|
Rock 420F
|
3-8T/H
|
2*2-30*30mm
|
3.5KW
|
2625*1597*2142mm
|
1650KG
|
Customer Case
