Intelligent Optical Sorting Machine Bean Color SorterTechnical Parameter
| Model |
NBBS0001 |
NBBS0002 |
NBBS0005 |
NBBS0008 |
| Executing unit |
64 |
128 |
320 |
512 |
| Throughput(T/H) |
0.5-3 |
1-4 |
5-10 |
11-20 |
| Voltage(V) |
110-250V/50-60HZ |
| Power(KW) |
1 |
1.4 |
2.6 |
4 |
| Weight(KG) |
480 |
660 |
1200 |
1580 |
| Dimension(MM) |
960*1630*2050 |
1340*1630*2050 |
2225*1630*2050 |
3068*1630*2050 |
| Sorting accuracy (%) |
≥99.99 |
| Rejection rate |
≥20:1 |
| Air consumption (L/Min) |
400-800 |
600-1000 |
1300-2200 |
2200-4000 |
| Notes |
Subject to different impurities of raw materials, parameters listed in table will change to some extent |
Sorting Material with our Intelligent Optical Sorting Machine Bean Color Sorter
Intelligent Optical Sorting Machine Bean Color Sorter Working principle
Advantage of Intelligent Optical Sorting Machine Bean Color Sorter
1,Near human eye vision color sorting technology, using 16 million colors, brings the best sorting performances
2,Full-color cameras optical system, with dimensional control of the defects, allows 0.1mm optical resolution
3,image acquisition allows the easy and accurate setting of the defects to remove. Software adjustment is completely automatic thanks to HSV technology
4,Shape-sizing integrated into the system
5,Most concentrated rejects, thanks to customized hi-tech ejectors
6,Highest production capacities, automatically regulated by a feeder control device
7,Possibility to have simultaneous product resort, even with reverse sorting and third sorting.
8,Possibility to add sloping chutes for sorter upgrading or production increase
9,Possibility to install additional cameras operating in NIR and InGaAs even after machine installation at working premises
10,Led lighting system which is digital control
11,Automatic cleaning system, with adjustable frequency and duration
12,Tilting optical boxes, to allow an easy internal access for maintenance operations
13,Airtight optical boxes with controlled temperature
14,Designed mechanics grants the highest hygiene and prevents product outflow or accumulation
15,Provision with de-dusting suction systems
16,14-inches display with full-color and multilingual touch-screen
17,Flexible and user-friendly
18,Reduced electric and compressed air consumption.
19,CE certification
20,Use best quality components to ensure excellent quality.
21,from one chute to sixteen chutes to meet any different production capacity requirement
Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

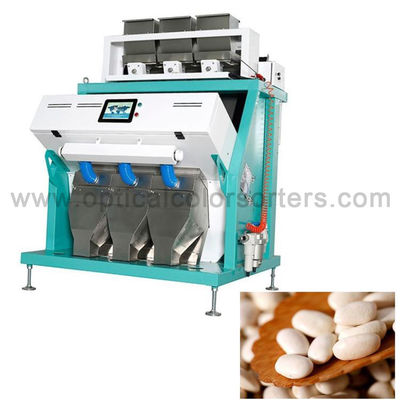

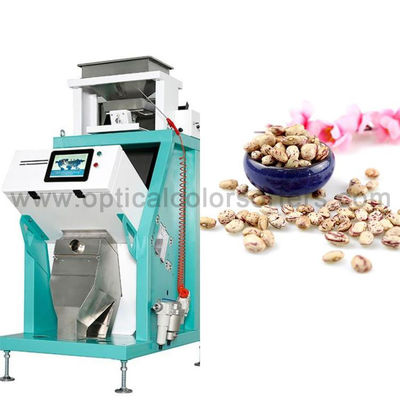

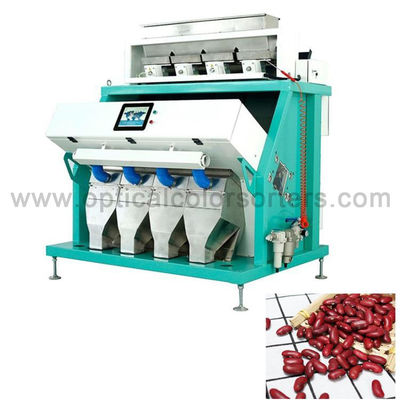

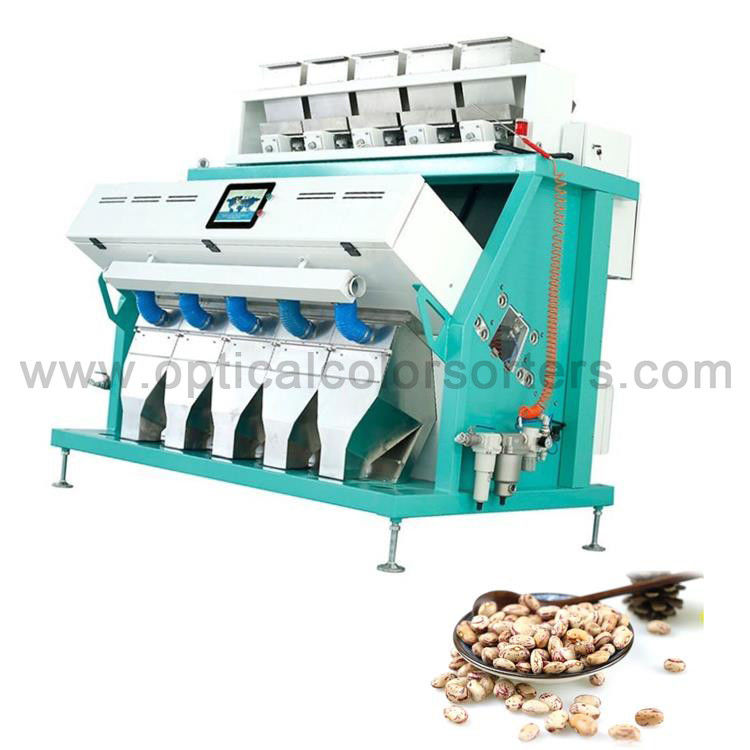

Real Pictures Show
Why Choose Our Speckled Kidney Bean Color Sorting Machines Professional Optical Bean Sorting Machine?
1. Over 10 years experiences focus on color sorter. We are one of the biggest sorter machine factory in China. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team(5 famous doctor engineers are included ). We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, ROHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
