Intelligent Optical Sorting Machine Coffee Bean Color Sorter Coffee Bean Sorting Equipment
Color sorting is frequently used to remove the defective coffee beans that were not removed during coffee processing or hulling. Many countries sort coffee beans by hand due to inexpensive labor, but for most countries investment in a color sorting machine, or color separator, is necessary.
The methodology behind color sorting machines is similar. The color of each coffee bean is quickly measured using a type of CCD camera system and depending on this wavelength measurement the bean is either allowed to flow downward or is shot with a puff of air into the reject pile. Monochromatic machines remove white and black coffee beans since they have a lighter or darker hue than the average. The more specific bichromatic color sorting machines detect and eliminate coffee beans that are white, unripe, broken, insect damaged, and black.
For more information about color sorting machines or the process of sorting coffee beans, feel free to contact
Intelligent Optical Sorting Machine Coffee Bean Color Sorter Technical Parameters
| Model |
Capacity(bad:good) |
Accuracy(%) |
Power(v/Hz) |
Voltage(Kw) |
Weight(Kg) |
Dimension(mm) |
| RC64 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.3~0.5 |
240 |
974.2*1550.9*1399 |
| RC128 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.3~0. 5 |
500 |
1239*1705.3*1827.9 |
| RC192 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7-1.1 |
800 |
1554*1707*1827.9 |
| RC256 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7-1.1 |
1000 |
1869*1707*1827.9 |
| RC320 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7~1.1 |
1100 |
2184*1707*1827.9 |
| RC384 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.1~1.9 |
1350 |
2499.2*1707*1827.9 |
| RC448 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.1~1.9 |
1350 |
2814.2*1706.7*1839.9 |
| RC512 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.3~2.2 |
1500 |
3129*1709.9*1827.9 |
| RC640 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.4~2.3 |
1750 |
3759.2*1709.9*1827.9 |
| RC768 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.4-2.3 |
1900 |
4389.2*1709.9*1827.9 |
Remark: We have many models from 1 chute to 16 chutes for option to meet any different production capacity.
The exact production capacity may change due to different impurity level.
Intelligent Optical Sorting Machine Coffee Bean Color Sorter Function & Features
Examples of Sorting

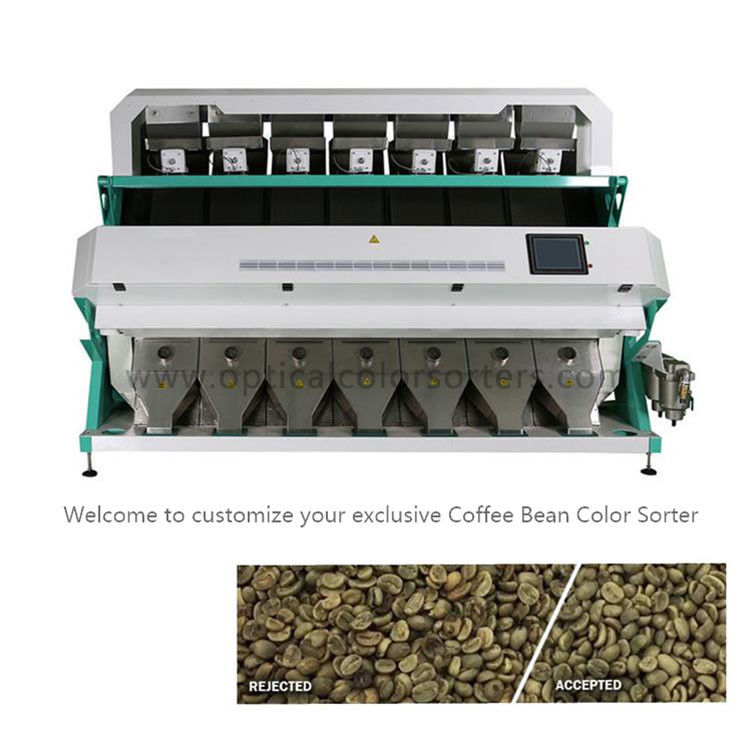

Sorting Result
Intelligent Optical Sorting Machine Coffee Bean Color Sorter Coffee Bean Sorting Equipment
Why Choose NEW BELT Coffee Bean Color Sorter ?
1) Designed and manufactured by a major Chinese color sorter company who has been devoted in color sorter
Manufacture for over 10 years, the technology is mature and the machine is long time tested by the market
2) Famous of high accuracy and persistence
3) All our machines can be customized, including Italian matrix ejectors, Japanese SMC ejectors, Japanese Nikon cameras, etc
4) OEM is available for all of our machines
5) Engineers available to provide installation and after sale service in all countries.
