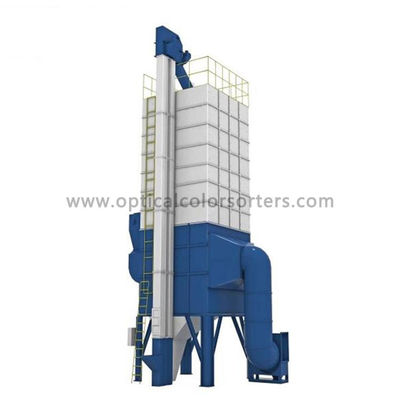

30 Ton Rice Grain Dryer Machine Low Speed Auger Type For Rice / Wheat
1. One machine multi-purpose, can dry rice, wheat, corn, peanuts, soybeans.Sorghum and other food crops and their seeds.
2. Forced dispersing device and quantitative feeding cycle of positive and negative grain discharge, thin layer and large air flow, uniform grain drying, high drying efficiency.
3. Low temperature drying, good quality rice, high germination rate of seeds.
4. Adopt large spiral feeder, high strength nylon dustpan, stainless steel net plate, wear-resisting, anti-deformation, durable and don't hurt grain.
5. Residual material cleaning device, easy to remove grain residual material, prevent mixing.
5HPX-15 Grain Drying Machine Paddy Dryer TECHNICAL PARAMETERS
| Product Description |
| Model |
5HPX-15 |
5HPX-20 |
5HPX-30 |
5HPX-30B |
5HPX-35 |
| Loading capacity(kg) |
Paddy |
3,000~15,000 |
3,000~20,000 |
4,000~30,000 |
4,000~30,000 |
5,000~35,000 |
| |
Corn |
3,800~18,500 |
3,800~24,600 |
5,000~36,400 |
5,000~36,400 |
6,000~42,000 |
| Dimension L*W*H (mm) |
4321*2583*10000 |
4600*3263*10500 |
4600*3260*12700 |
4600*3570*12700 |
5712*5000*12400 |
| Net Weight |
3,000 |
4,200 |
5,500 |
6,500 |
8,000 |
| Heat Source |
Biomass Furnace/Gas Burner/Diesel Burner |
| Power Consumption (kw) |
9.95 |
10.6 |
15.45 |
21.7 |
19.7 |
| Input Voltage |
3 Phase 220V/380V,50Hz |
| Husk Furnace |
Type |
Indirect |
| |
Ignition |
Manual |
| Function |
Loading |
50~60(approx) |
50~60(approx) |
60~70(approx) |
60~70(approx) |
60~70(approx) |
| |
Discharge |
50~60(approx) |
50~60(approx) |
60~70(approx) |
60~70(approx) |
60~70(approx) |
| |
Drying Rate |
0.5-1.2 %/h |
0.5-1.2 %/h |
0.6-1.2 %/h |
0.6-1.4 %/h |
0.5-1.2 %/h |
| Standard Devices |
Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor |
| Safety Devices |
Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch |
Furnace Burner Options
| Furnace Type |
Yes/No |
| Diesel |
Yes |
| Gas |
Yes |
| Coal |
Yes |
| Biomass Material |
Yes(Husk/Wood/Straw/Etc) |

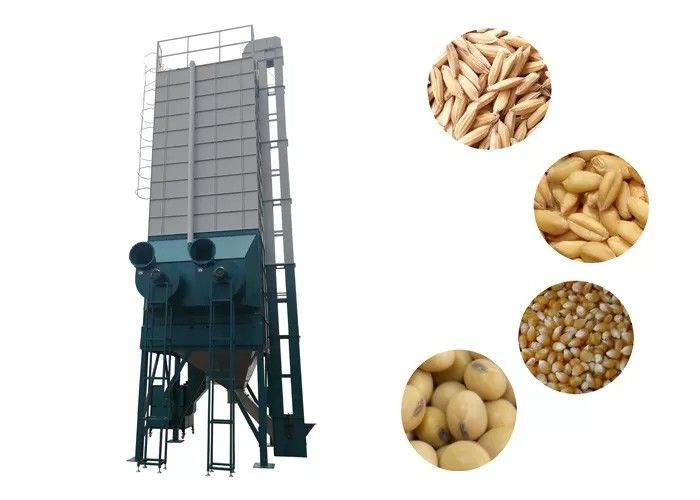

Various Application
rice/wheat/corn/rapeseed/soybean/other seeds
· High drying speed
reduce 1% moisture per hour on average
· Indirect heating technology
less pollution and more safety
- Imported Electric Motors and NSK/ASAHI Bearings
- Anti-broken Elevator
- Stable Quality after long running time
- Low Speed Augur made of manganese steel
FEATURES:
1. Professional use grain dryers which are designed especially for small pack and quality rice. Bring you the highest profit and income.
2. Spreading device and rotary valves ensure seeds and grains to circulate evenly and make even drying possible
3. Use giant screw conveyor, PVC steel bucket,Galvanized steel sheet for durability use.
4. Sufficient Inspection zone and emergency unloading valve to make sure no stuck for the grains in the dryer
Drying Unit Diagram
What We Can Offer
1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Packaging & Shipping
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Our parts warehouse:
We have parts warehoue to make sure deliver parts of machine to custome timely. and provide customer best after sale service.
Our company:
"Quality is our culture". Our boss is very strict on production and management. We have a professional designer team and engineers. And our factory have cooperated with University of Science and Technology in agricultural machinery industry. So we make sure you high quality of product and timely delivery.Weclome to inquiry!!!
Applicantion:
